Standard: ISO 15630-1, ISO 7438, ASTM A615
Cold Bend / Rebend Test
Used for bending & re-bending reinforced steel bar, the machine is mainly composed of transmission parts, racks, table & screw adjustment device, equipped with protective enclosures. Supplied with Removal Tool and tool kit set.
The machine can perform two types of test:
- Bending the specimen through 180° with mandrels up to maximum 350 mm are included.
- Perform a rebend of at least 20° on the test specimen.
Technical Specifications:
| Model Number |
NL 6001 X / 005 |
| Specimen Diameter |
6 - 50 mm |
| Max. Bend Force |
160 kN |
| Max. Support Distance |
800 mm |
| Max. Bending Angle |
0° - 180° |
| Re-Bending Angle |
20° minimum |
| Piston Speed |
200 mm/min |
| Max. Piston Stroke |
400 mm |
| Dimension |
1550 (L) x 900 (W) x 1050 (H) mm |
| Approx. Weight |
400 kg |
| Power |
380~415 V, 1.1 kW, 3 Ph, 50/60 Hz, 1.99 A |
Unit Consist Of:
| Model Number |
Parts Description |
Qty |

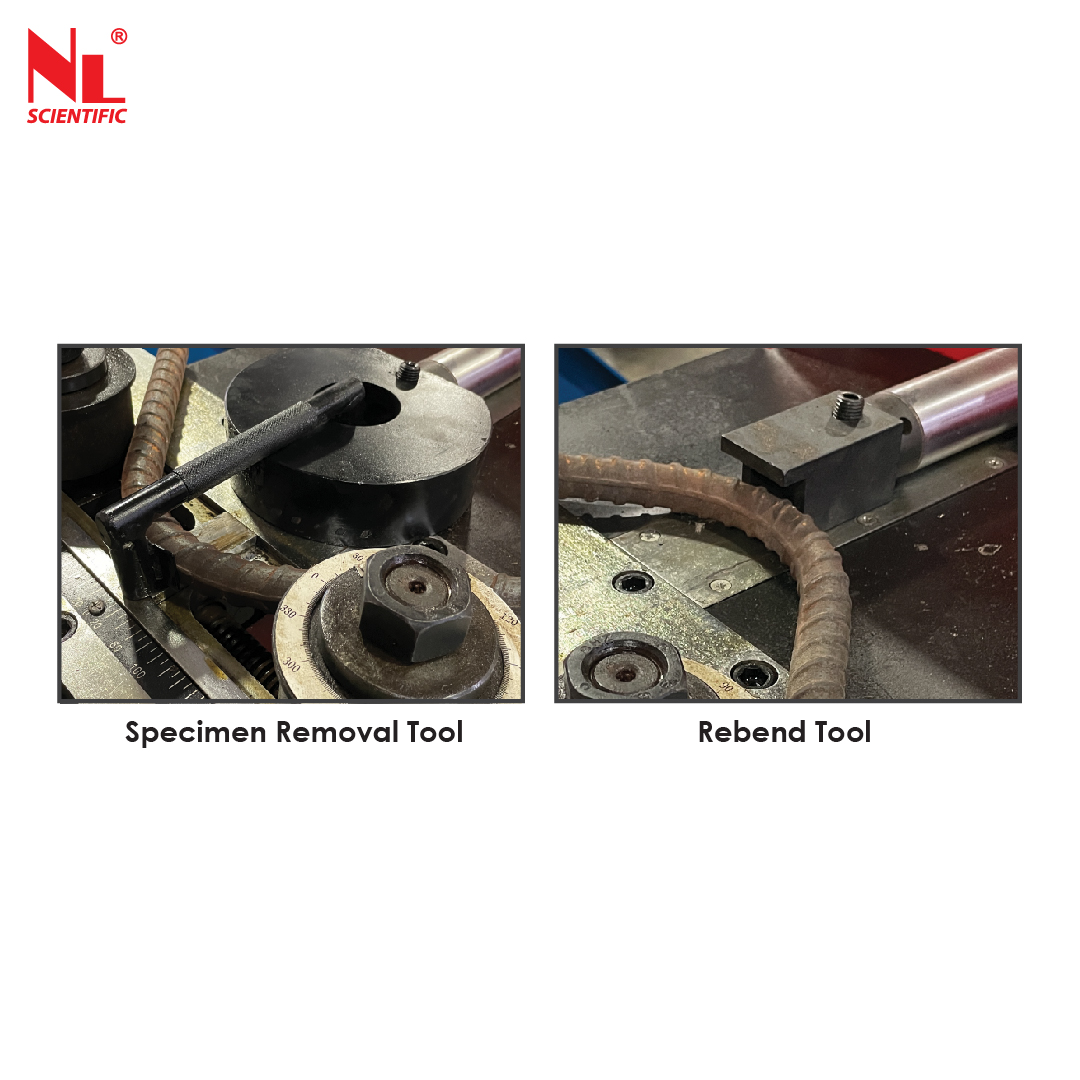

| NL 6001 X / 004 – P 001 |
Specimen Removal Tool |
1no. |
| NL 6001 X / 004 – P 002 |
Rebend Tool |
1no. |
| NL 6001 X / 004 – P 003 |

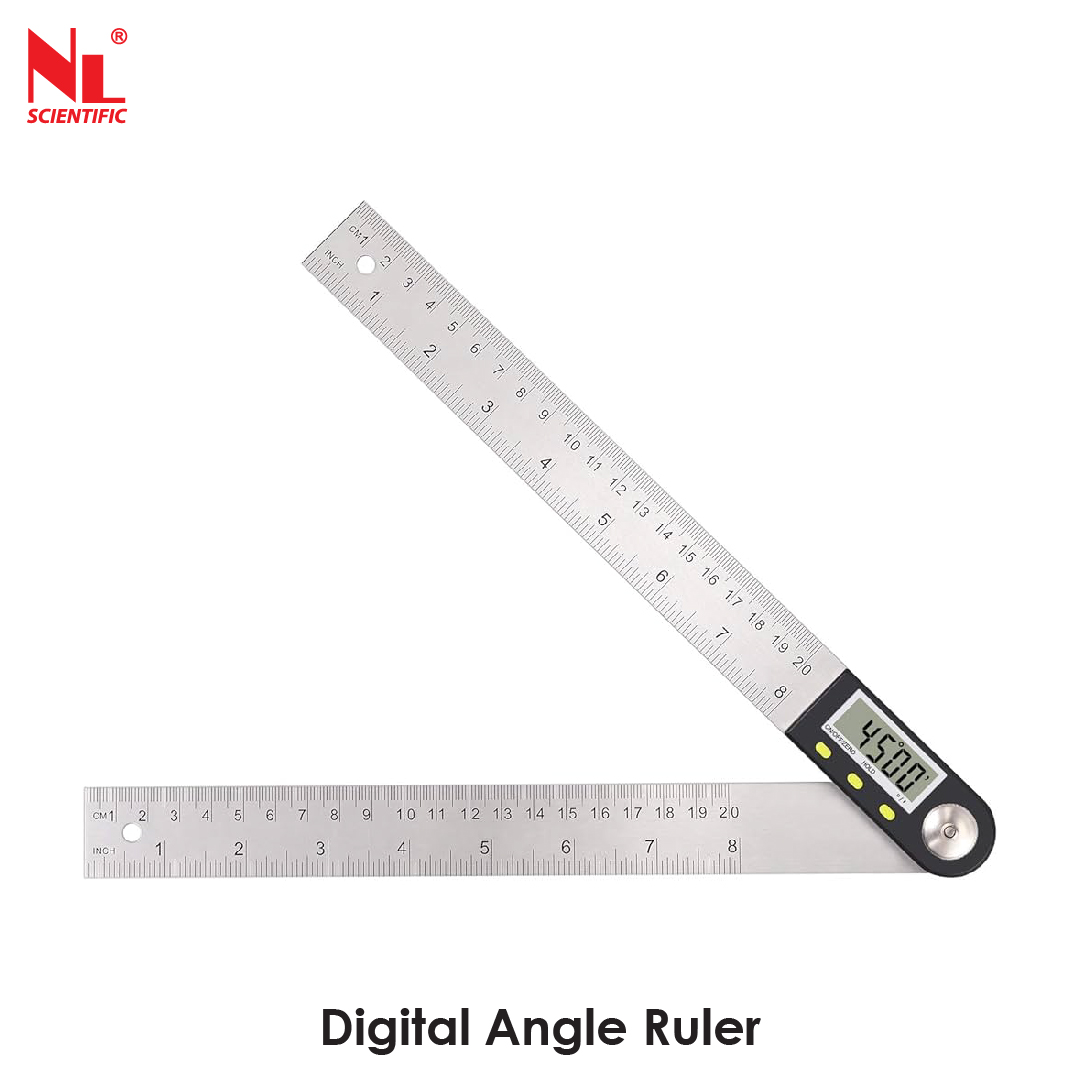

Digital Angle Ruler |
1set |
| NL 6001 X / 004 – P 004 |

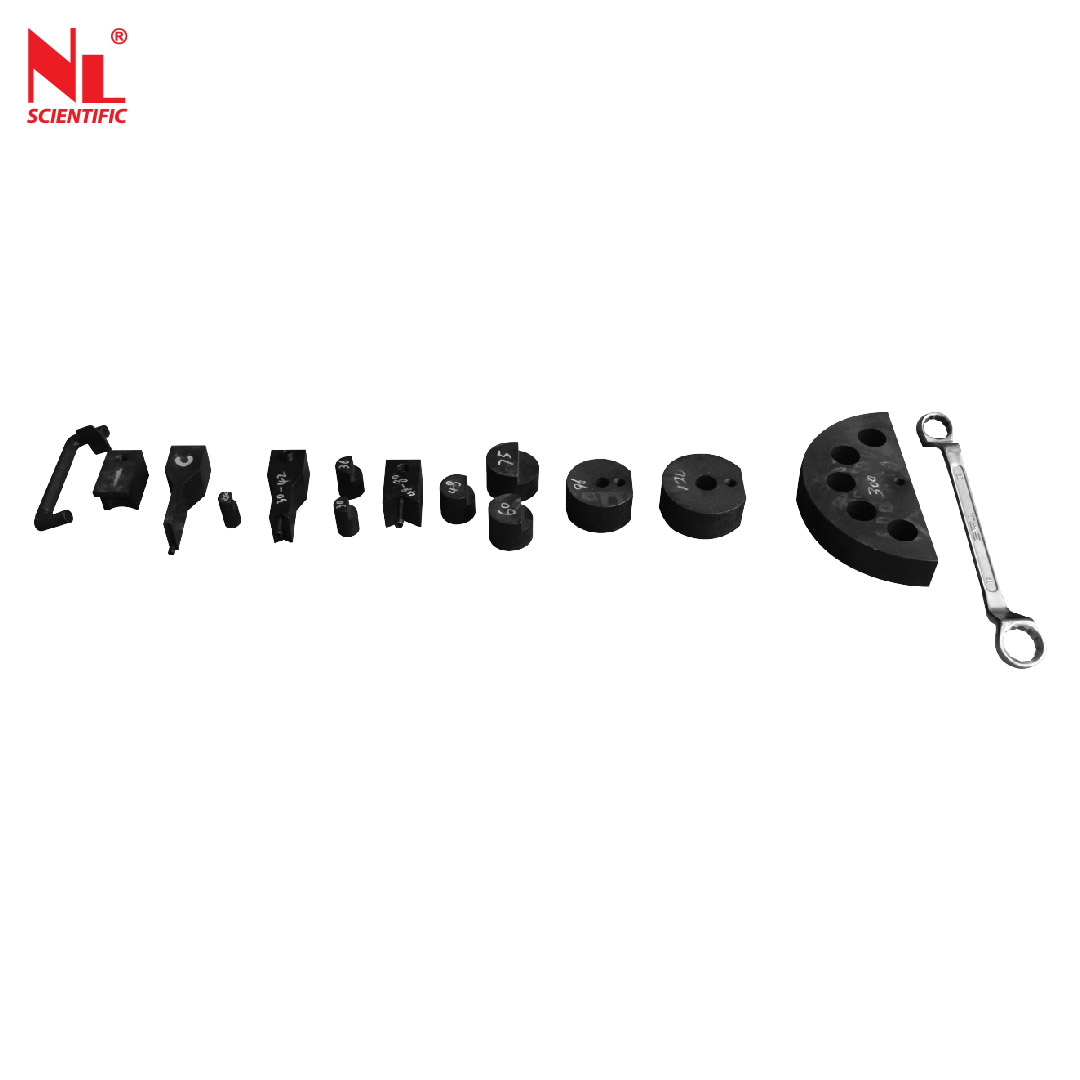

Basic Tool Kit |
1set |
NL 6001 X / 004 – P 005
|
Mandrel Holder Type A (18 - 24mm only) |
1set
|
| NL 6001 X / 004 – P 006 |
Mandrel Holder Type B (27 - 44mm only) |
1set |
| NL 6001 X / 004 – P 007 |
Mandrel Holder Type C (48 - 64mm only) |
1set |
Selectable Options:
| Mandrel Size |
Options for Rebar Diameter (mm) |
Mandrel Holder |
| 1 |
2 |
3 |
| BS EN ISO 15630-1 |
ASTM A615 |
MS 146 |
| A023 |
18 |
6 |
- |
6 |
Type A |
| A024 |
21 |
7 |
- |
7 |
| A001 |
24 |
8 |
- |
8 |
| A025 |
27 |
- |
- |
9 |
Type B |
| A026 |
30 |
10 |
- |
10 |
| A004 |
36 |
12 |
#3 (9.5 mm) |
12 |
| A027 |
42 |
14 |
- |
14 |
| A007 |
48 |
16 |
- |
16 |
Type C |
| A028 |
54 |
18 |
- |
- |
| A009 |
64 |
- |
#4 (12.7 mm) |
- |
| A030 |
80 |
20 |
#5 (15.9 mm) |
20 |
Axially mounted to the piston |
| A031 |
88 |
22 |
- |
- |
| A010 |
96 |
- |
#6 (19.1 mm) |
- |
| A032 |
110 |
26 |
#7 (22.2 mm) |
- |
| A033 |
125 |
- |
#8 (25.4 mm) |
25 |
| A014 |
140 |
28 |
- |
- |
| A044 |
160 |
32 |
- |
32 |
| A045 |
190 |
38 |
- |
- |
| A017 |
200 |
40 |
#9 (28.7 mm) |
- |
| A018 |
224 |
- |
#10 (32.3 mm) |
- |
| A019 |
250 |
- |
- |
36 |
| A020 |
280 |
- |
#11 (35.8 mm) |
40 |
| A046 |
300 |
50 |
- |
- |
| A047 |
350 |
- |
#14 (43.0 mm) |
50 |
Optional Accessories:
| Model Number |
Accessories Description |
| NL 6001 X / 004 – A002 |
Mandrel (Ø 28 mm) |
| NL 6001 X / 004 – A003 |
Mandrel (Ø 32 mm) |
| NL 6001 X / 004 – A005 |
Mandrel (Ø 40 mm) |
| NL 6001 X / 004 – A006 |
Mandrel (Ø 44 mm) |
| NL 6001 X / 004 – A008 |
Mandrel (Ø 56 mm) |
| NL 6001 X / 004 – A011 |
Mandrel (Ø 112 mm) |
| NL 6001 X / 004 – A012 |
Mandrel (Ø 128 mm) |
| NL 6001 X / 004 – A013 |
Mandrel (Ø 132 mm) |
| NL 6001 X / 004 – A015 |
Mandrel (Ø 175 mm) |
| NL 6001 X / 004 – A016 |
Mandrel (Ø 180 mm) |
| NL 6001 X / 004 – A021 |
Mandrel (Ø 320 mm) |
| NL 6001 X / 004 – A022 |
Mandrel (Ø 336 mm) |
*Mandrels that are not in the range also can be ordered separately.
Features of Cold Bend Testing Machine
- 180° and 90° Bending Test: bending the specimen through 180° with mandrels up to a certain diameter, and bending the specimen through 90° followed by straightening it again up to a minimum angle with mandrels over a certain diameter.
- Accurate Force Measurement: The machine applies a controlled force to bend the specimen at specified angles and rates.
- Works with Different Samples: It is designed to accommodate various types of specimens, such as metal bars or sheets, with different dimensions and shapes.
- Adjustability: The machine allows for the adjustment of bending angles, rates, and mandrel sizes to simulate different bending conditions.
