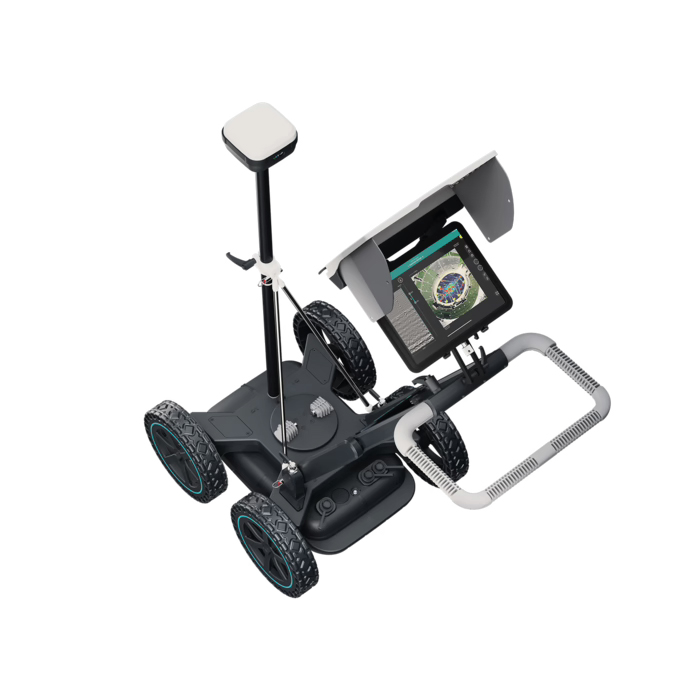

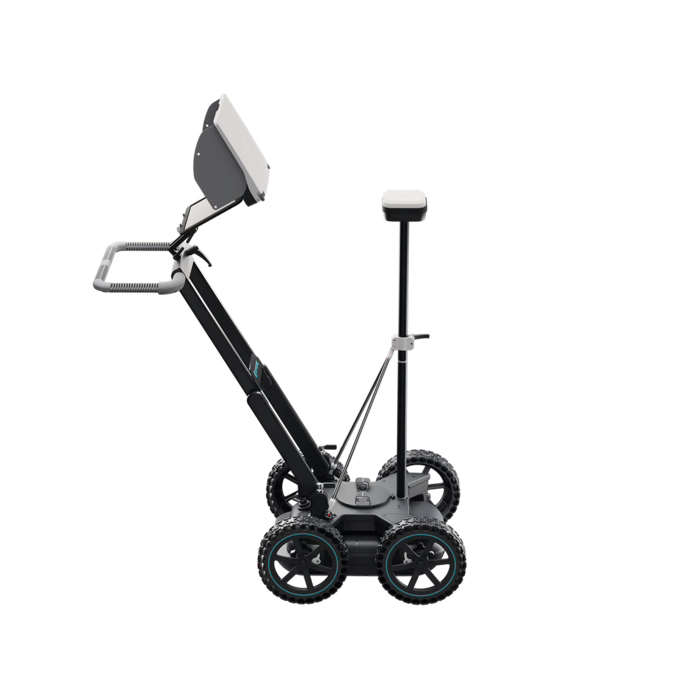

Subsurface Mapping GPR GS8000 Lite
The Proceq GS8000 Lite is a user-friendly Ground Penetrating Radar (GPR) system designed for quick and efficient subsurface investigations. Whether you're locating buried utilities, checking for underground obstacles, or mapping subsurface features, this compact and lightweight device makes the job easier without compromising on accuracy. It's a great choice for professionals who need reliable data on-site without complex setups.
Built for portability and simplicity, the GS8000 Lite delivers powerful scanning performance in a streamlined design. With intuitive controls and clear visuals, it’s ideal for fieldwork in construction, civil engineering, and utility detection. If you're looking for a practical and efficient tool for everyday subsurface scanning, the GS8000 Lite is a smart solution.
The most efficient real-time workflow and technology to scan and digitize the subsurface

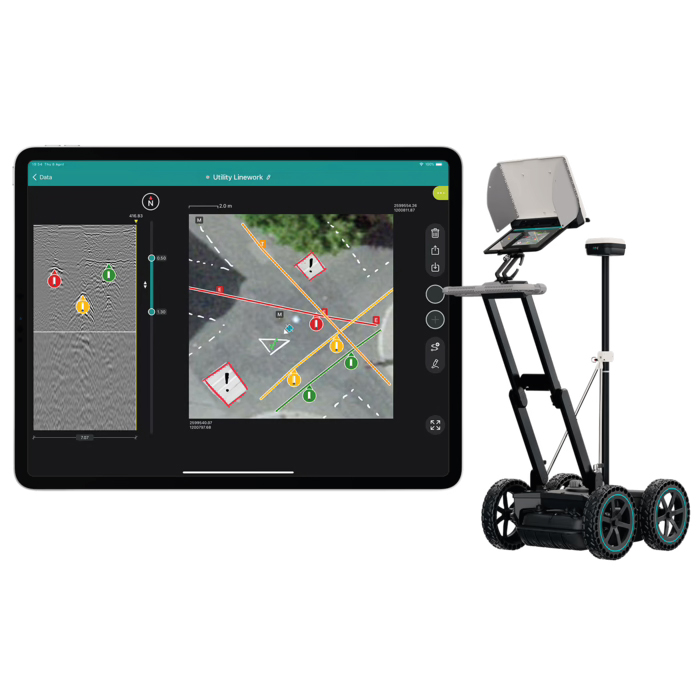

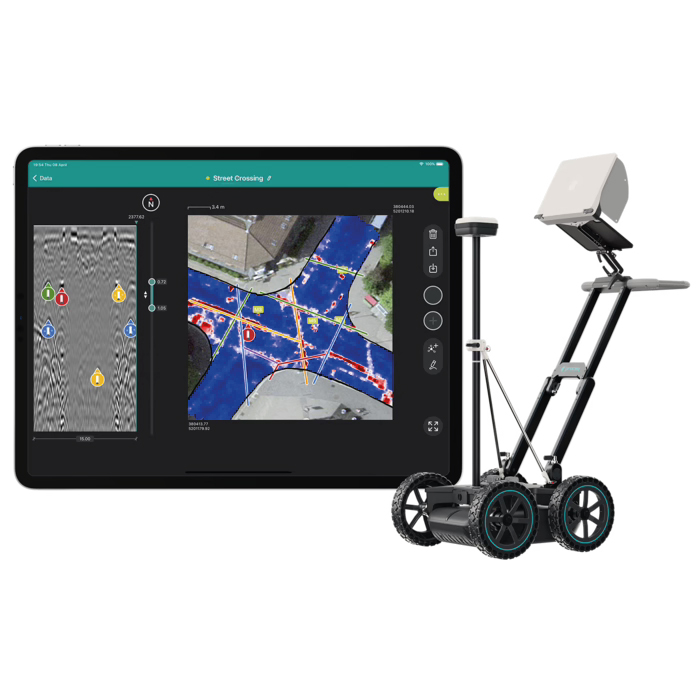

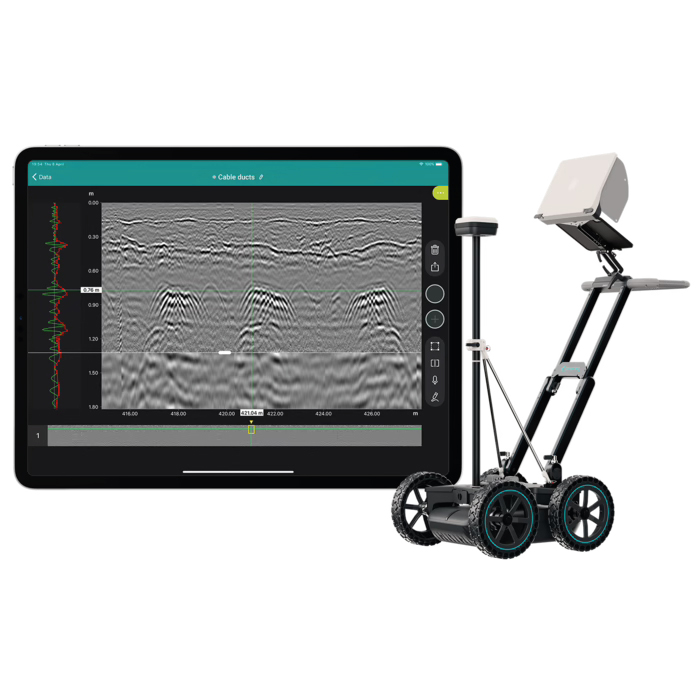

- Get a clear image of the underground in 2D and 3D as you walk
- Digitize on-site findings on the map and send to CAD/GIS
- Access to your data from anywhere, anytime
Applications:
Damage prevention / Excavation safety / Utility locating & mapping / Subsurface utility engineering (SUE) / Surveying & Reality Capture / Road inspection / Bridge inspection / Geophysical investigations / Archaeology / Forensics & UXO / Precision Agriculture
Technical Specifications:
| Model Number |
GS8000 Lite |
| Radar technology |
Stepped-frequency Continuous-Wave GPR |
| Modulated frequency range |
40 – 3440 MHz |
| Effective bandwidth |
3200 MHz |
| Min. detectable target size |
1 cm | 0.4 in ² |
| Max. time window |
200 ns |
| Scan rate |
500 Hz |
| Spatial interval |
Up to 100 scans/m |
| Acquisition speed |
Up to 80 Km/h | 50 mph ³ |

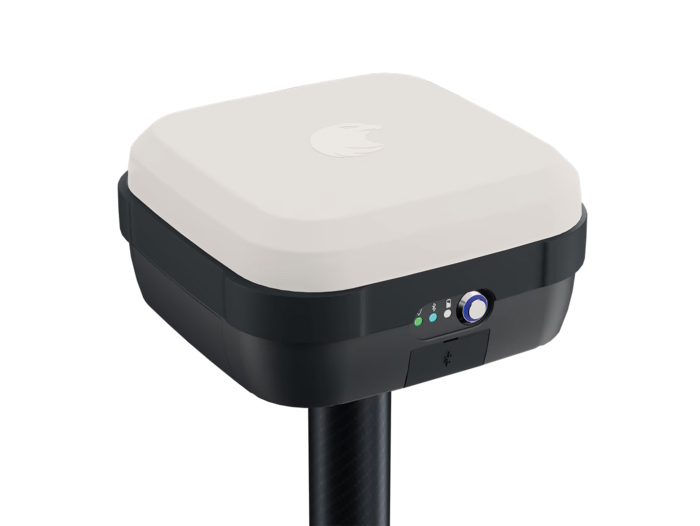

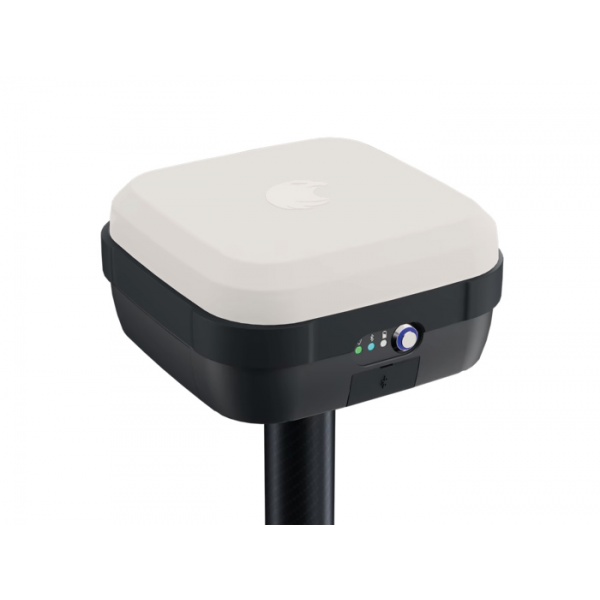

| GNSS receiver |
Multiband GPS + Glonass + Galileo + Beidou
SSR augmentation / NRTK-compatible ⁴
Dimensions: 145 x 145 x 70 mm
Weight: 0.7 Kg, 4x AA-batteries included |
| GNSS real-time 3D accuracy |
Typ. 1 - 5 cm | 0.5 - 2 in ⁵ |
| GNSS initialization time |
Typ. 5 - 30 s |
| Wheel encoders |
2 |
| Configurations |
Proceq GS8000 Lite
Proceq GS8000 Pro ⁶ |
| Weight |
24 Kg ⁷ |
| Dimensions |
61 x 57 x 38 cm ⁸ |
| Antenna positions |
Ground-coupled with dual-axis floating
Air-coupled with 25 mm clearance ⁹ |
| Ingress protection (IP) / sealing |
IP65 |

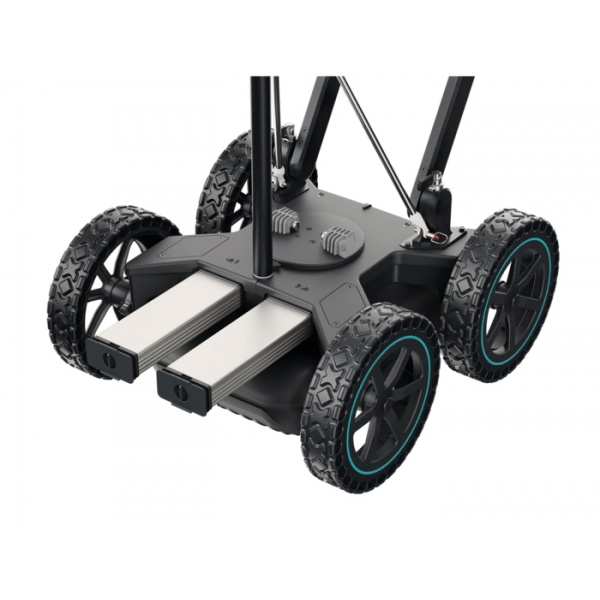

| Power supply |

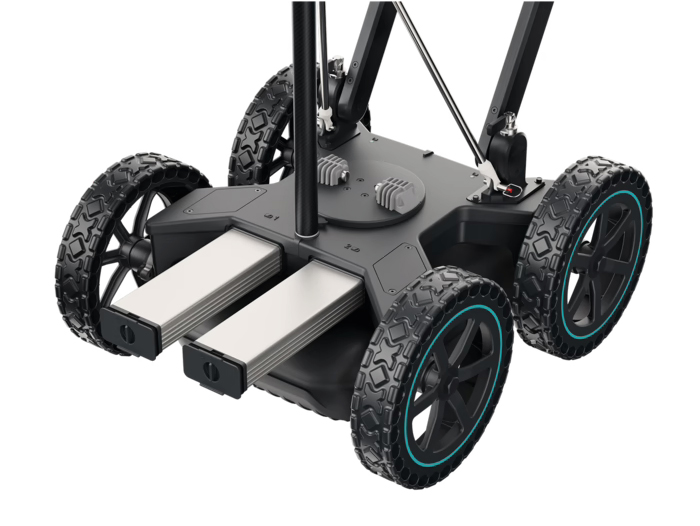

Removable flight-safe battery pack ¹⁰
| Off-the-shelf power bank ¹¹ |
| Autonomy |
3.5 hours | Full working day ¹² |
| Operating temperature |
-10° to 50°C | 14° to 122° F |
| Operating humidity |
<95% RH, non-condensing |
| Connectivity |
WiFi, Ethernet, USB-A, USB-B, USB-C, Lemo ¹³ |
1. Running an up-to-date iOS version; recommended models: iPad Pro® WiFi + Cellular 11” or 12.9”
2. Metallic object buried at 0.3 m / 1 ft, in average soil conditions
3. At 50 mm scan interval
4. Needs an active Internet connection on the iPad; SSR service available in Europe, USA, southern Canada, southeastern Australia and South Korea / NRTK corrections via NTRIP in RTCM3 format
5. Via NTRIP RTK or SSR corrections; the achieved accuracy is subject to atmospheric conditions, satellite geometry, observation time, etc.

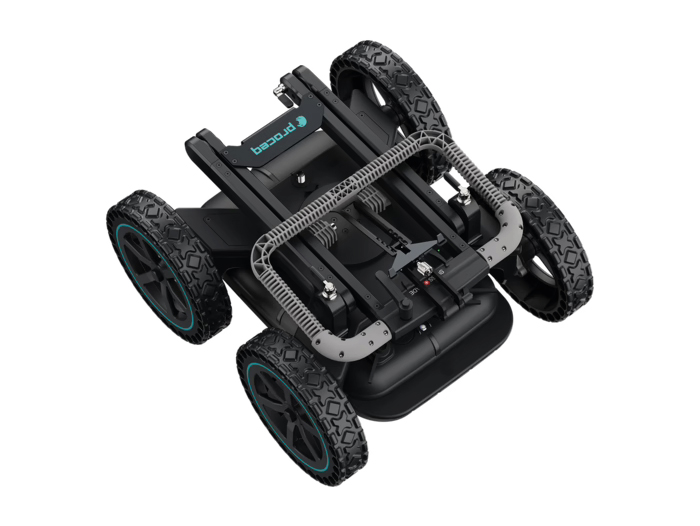

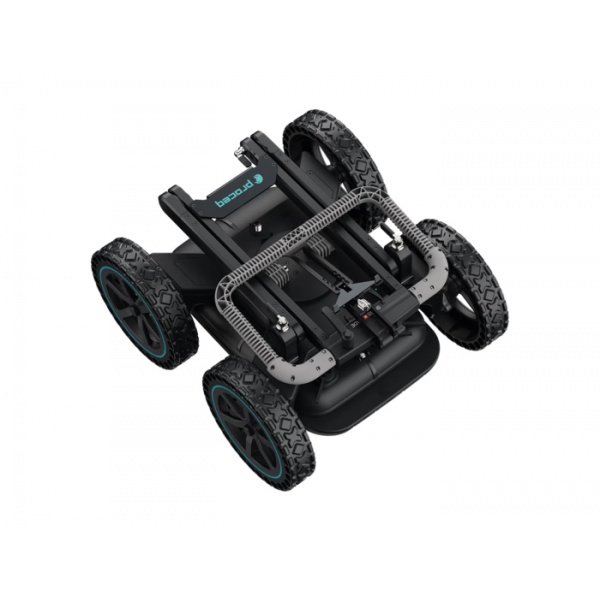

6. GS8000 Pro includes additionally: off-road wheels and underbody, GNSS pole fixation kit, tablet cover for sun and rain, hard transportation case
7. For GS8000 Pro configuration: 27 Kg
8. For GS8000 Pro configuration: 68 x 60 x 42 cm
9. For GS8000 Pro configuration: 40 mm
10. Contains 8x rechargeable C-Type NiMH batteries
11. USB-C PD power bank with max. dimensions: W 85mm x H 28mm (recommended power: 12V/>=1.25A or 15V/>=1A)
12. Recommended battery capacity: >4500 mAh | Recommended power bank capacity: >20000 mAh
13. For terrestrial positioning systems, an intermediate serial adapter to DB9 might be needed to output Pseudo NMEA GGA positions
