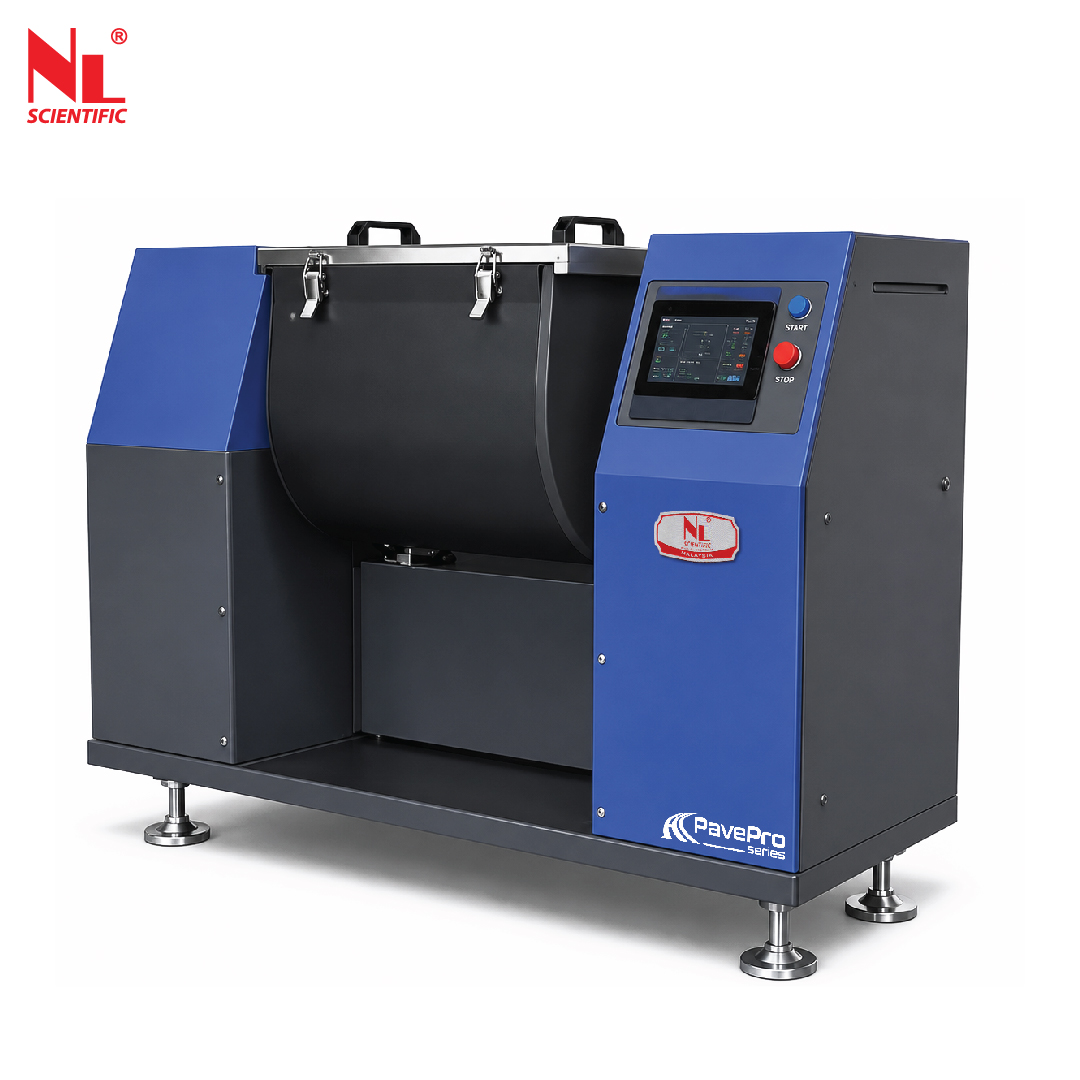

Automatic Asphalt Laboratory Mixer 30L
NL PV P8

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 12697-35

Equipment designed for preparing asphalt mixtures in the laboratory in accordance with
EN 12697-35. The mixer is designed to ensure that, at the specified mixing temperature, the asphalt thoroughly coats the aggregate surfaces within approximately 5 minutes.

Main Features:
• Industrial touchscreen control for simple operation and storage of working parameters.
• Real-time display of mixing-process data.
• Temperature can be freely set from ambient temperature to 200°C, suitable for cold-mix warm-mix and hot-mix requirements.
• The temperature sensor provides real-time monitoring during mixing, with temperature-control accuracy of ±1°C.
• Adjustable mixing speed to suit different aggregates and various modified-asphalt mixtures.
• Automatic discharge after completion of mixing.

Technical Specifications:

Model Number	NL PV / P8
Maximum Capacity	30 Litres
Heating Temperature	Ambient to 200 °C
Temperature Control Accuracy	±1 °C
Mixing Speed	5 - 35 r/min
Product Dimension	1390 x 650 x 1200 mm
Approx. Weight	280 kg
Power	(380 ± 10) V, 50 Hz, 20 A, (three-phase four-wire with neutral)

*1 Copy of Manual Instruction
