Load Proving Ring
NL 7023 X

Load Proving Ring

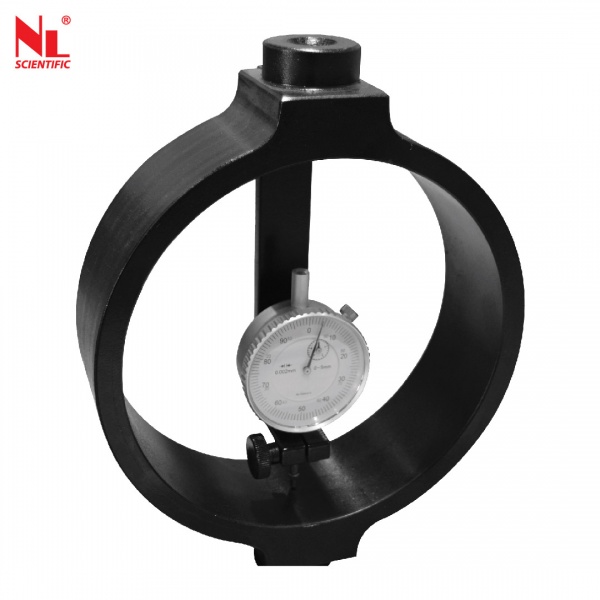

Load Proving Ring is an instrument used for measuring the load or force applied to materials during various tests and experiments. It consists of a ring-shaped device with a built-in strain gauge that can accurately measure the force exerted on the materials.  The purpose of a Load Proving Ring is to provide precise and reliable measurements of the load applied to materials samples during compaction, shear strength, and bearing capacity tests. By accurately measuring the applied load, engineers and researchers can assess the behavior and mechanical properties of materials under different conditions, helping in the design and analysis of foundations, retaining structures, and other soil-based engineering projects.

All load-proving rings offer a consistently high order of accuracy and repeatability. Clamped boss proving available in the range of 1 kN to 100 kN. These proving are calibrated in accordance with BS 1610 and issued with a calibration certificate. The repeatability is within ± 0.2% of the indicated load. The proving ring can be fitted for marshall, CBR UU, and unconfined test. Supplied with in-house calibration certificate & carry case.

Features of Load Proving Ring

• Accurately measures the force applied to materials during tests.
• Easy to place on materials samples for testing.
• Provides precise and reliable load measurements.
• Helps understand materials performance under different conditions.

Test Procedure for Load Proving Ring

1. Preparation: Set up the testing apparatus according to the specific requirements of the experiment or application.
2. Placement: Position the load-proving ring securely in the desired location, ensuring proper contact with the load or force to be measured.
3. Loading: Apply the load or force gradually to the load-proving ring, following the predetermined testing protocol. Take care to avoid sudden or excessive loading that could compromise accuracy.
4. Measurement: Monitor the readings on the load-proving ring as the load is applied. Record the measurements at regular intervals or at specific load increments, depending on the testing requirements.
5. Data Collection: Record all relevant data, including the applied load, time, and any other pertinent information related to the testing conditions.
6. Analysis: Analyze the data collected from the load-proving ring to determine the response of the material or structure under test. Compare the measurements against applicable standards or specifications, if available.
7. Adjustments: Make any necessary adjustments to the testing parameters or procedures based on the analysis of the results.
8. Repeat Testing (if necessary): Conduct additional tests as needed to verify results or explore different loading scenarios.
9. Documentation: Document all test procedures, results, and observations in a comprehensive report. Include details such as test conditions, equipment used, and any deviations from standard procedures.
