Standard: BSEN 10002-1, ISO 7500-1, ASTM A370
Tensile & Compression

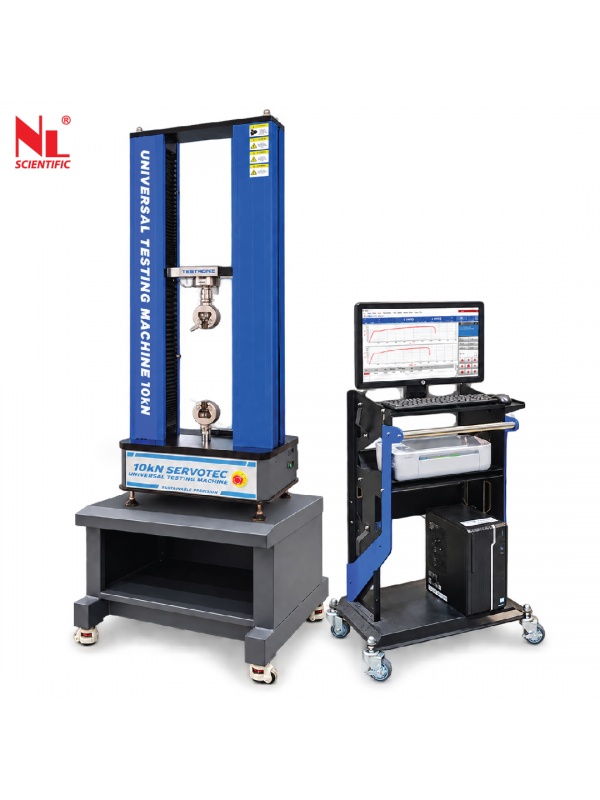

Universal Testing Machine 50kN Servo Fully Automatic
Universal Testing Machine 50kN used for measurement & test of mechanical property & analytical study of metal, non-metal & composite material, such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminum plastic tube, plastic door & window, geo-textile, film, wood, paper, metal material & manufacture industry, etc.
It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kinds of strength values manually. The RA232 connector can have the function of communicating with the computer to do the data work. It is an essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purposes.
TT Servotec Fully Automatic Universal Testing Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. Its real-time displays test data & test status with an LCD module. A professionally designed servo control system realizes the PWM pulse width modulation control mode. It comes up with test speed closed-loop control mode. It is controlled by a single chip automatically control.
Features of Universal Testing Machine 50kN Servo Fully Automatic
Testable Items
General test item: (General display value and calculated value)
- Tensile stress
- Tensile strength
- Pulling strength
- Stable tensile stress
- Constant stress force value
- Tear off the elongation
- Constant stress elongation
- Tear strength
- Any point force value.
- Any point elongation
- Extraction
- Computation of adhesion and peak value
- Pressure test
- Bending test
- Adhesive force stripping force test
- Extraction force piercing force test
- Cycle test
TM 2101 Software of Universal Testing Machine 50kN Servo Fully Automatic
- Standard Windows interface for easy navigation
- Real-time display, displacement, stress-strain curves during tests
- Freely switch between curve screens and view user settings
- Various control modes: constant speed, fixed displacement, constant force rate, constant stress, constant strain rate
- Powerful statistical and curve analysis tools (zoom, pan, cross cursor, take point)
- Multiple historical test data for comparative analysis
- Open test result editing for customized results
- Innovative Microsoft Word report format for easy editing
- Permission management system for secure and reliable software operation
TM 2101 Hardware of Universal Testing Machine 50kN Servo Fully Automatic
- Main controller: 32-bit ARM processor for high-speed operation and precise control
- Data acquisition: 24-bit AD with a sampling rate of 2000 times/sec, resolution up to 50000 degrees
- 6-point calibration technology for improved accuracy (better than the national 0.5 standard)
- Closed-loop technology for accurate control of speed, displacement, and power waveforms
- Extensive interface expansion: 4 analogue inputs (24-bit), 3 analogue outputs (16-bit), 3 pulse outputs, 3 AB PHASE encoder inputs, 9 switch inputs, 8 switch outputs
- Additional interfaces: 1 USB, 1 RS232, 1 RS485, 4 LCD interfaces, 1 parallel port micro printer interface, 1 8x4 matrix keyboard interface
Standards
- ASTM A370 is a standard specification by ASTM International that defines the mechanical testing of steel products.
- BSEN 10002-1 is a standard for tensile testing of metallic materials.
- ISO 7500-1 is a standard for "Testing Machines - Calibration and Verification of the Force-Measuring System.
Test Procedure for Universal Testing Machine 50kN Servo Fully Automatic
1. Preparation: Set up the UTM and ensure safety measures are in place.
2. Sample Preparation: Prepare the specimen according to testing requirements.
3. Setting Up Test Parameters: Enter test details like type, speed, and control into the UTM.
4. Loading the Specimen: Place the specimen securely in the UTM's grips or fixtures.
5. Initiating the Test: Start the test and keep an eye on it.
6. Data Collection: Let the UTM gather data during the test.
7. Analysis and Interpretation: After the test, analyze the data to understand specimen properties.
8. Reporting: Document results and observations in a report.
9. Post-Test Procedures: Remove the specimen safely and shut down the UTM.
10. Quality Assurance: Regularly maintain and calibrate the UTM for accuracy.
Technical Specifications of Universal Testing Machine 50kN Servo Fully Automatic
| Model Number |
TT 6000 X / 019N |
| Max Test Force |
50 kN |
| Structure Type |
Twin Rigid Column With Twin High Precision Ball Screw |
| Traveling Space |
950 mm (exclude fixtures) |
| Width Space |
400 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 - 500 mm/min |
| Load Resolution |
1/100 000 |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5%
|
| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5%
|
Accuracy of Extenders
|
±1 mm
|
| Measuring Range |
0.5% - 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |
| Curve Display |
Selectable Axial Parameters:
Y-axis - time, load, displacement, deformation, stress, strain.
X-axis - time, load, displacement, deformation, stress, strain. |
| Data Display |
Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm ) |
| Main Drive Unit |
Precision Servo Drive & Servo Motor |
| Safety Feature |
Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat |
| Power Source |
220 ~ 240V, 1500W, 15A, 1Ph, 50/60 Hz |
| Dimension (LxWxH) |
490 x 795 x 1750 mm |
| Approx Weight |
325 kg |
Unit Consists Of:
| Model Number |
Parts Description |
Qty |
| TT LC – 50kNC |
50kN High Precision Load Cell (Cell Type) |
1 Unit. |
| TT 6ST – G02 |
Mechanical Wedge Clamp (0-9mm/500 kgf) |
1 Unit. |
| TT 6ST – HC1 |
Handheld Magnetic Control Unit |
1 Unit. |
| TT 6ST – PC1 |
Desktop Computer Unit c/w Operation and the Software |
1 Unit. |
Optional Accessories:
| Model Number |
Parts Description |
Qty |
| TT CDT1 |
Console Desk T1 |
1 Set. |
| TT 6ST – CTS |
Cycle Test Software |
1 No. |
| TT AEX – 25/10 |
Axial Electronic Extensometer (GL25/D10) |
1 No. |
| TT AEX – 50/25 |
Axial Electronic Extensometer (GL50/D25) |
1 No. |
| TT AEX – 100/25 |
Axial Electronic Extensometer (GL100/D25) |
1 No. |
| TT 6ST – LTX-2 |
Long Travel Electronic Extensometer (LTX-2) |
1 No. |
| TT CP – 200 |
Computer Printer |
1 No. |
| TT 6ST – PBU |
Portable Bench Unit |
1 No. |
