Load & Force Verification The load cell is suitable for the calibration of compression testing machine. It consists of high quality steel block, named sensitive element, where strains have been fitted: the whole is housed in sheathing. While the load is applied, strains are transmitted to an am ...Read more

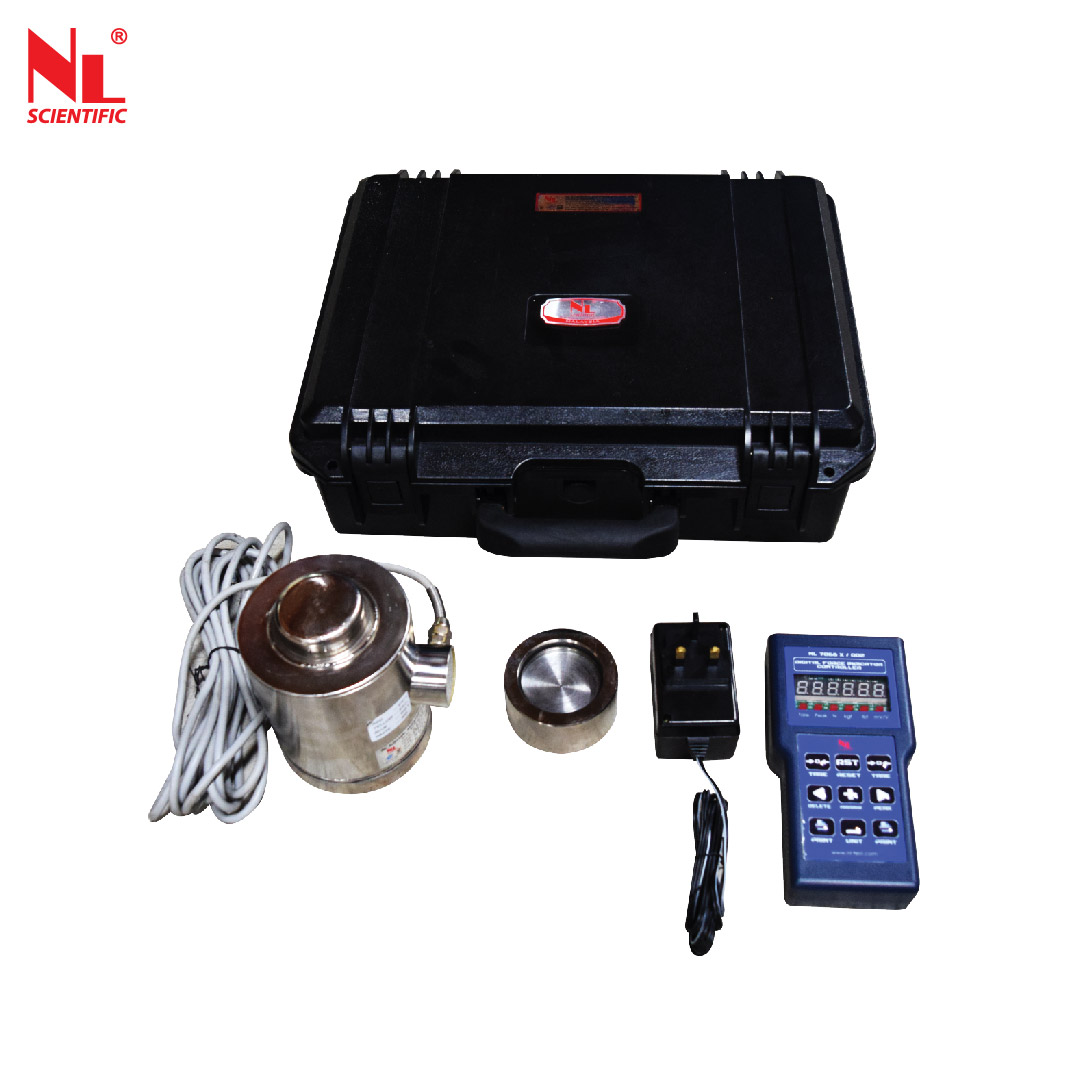

1000kN Digimatic Load Cell
NL 4031 X / 007

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Load & Force Verification

The load cell is suitable for the calibration of compression testing machine. It consists of high quality steel block, named sensitive element, where strains have been fitted: the whole is housed in sheathing. While the load is applied, strains are transmitted to an amplifier which gives a load digital reading.

Technical Specifications :

Model Number	NL 4031 X / 007
Capacity	1000 x 0.01 kN
Load Cell Dimension	Ø130 x 170 (H) (mm)
Working Temp.	0 - 45°C, Moisture ≤ 80% RH
Accuracy	Class ±1 %
Approx. Weight	19 kg
Power	Nicd AC Adaptor as charging source
