Concrete Testing Equipments

Product Range

Standard: EN 12390-1, ASTM C39/C192, AASHTO T23/T126, BS 1881:108 Making Concrete Specimens Technical Specifications : Model Number Items Description Dimension (LxWxH) mm Approx. Weight NL 4014 M / 014 Ø 100 x 200 mm Mild Steel Cylinder Mould 140 x 140 x 210 5.5 k ...Read more

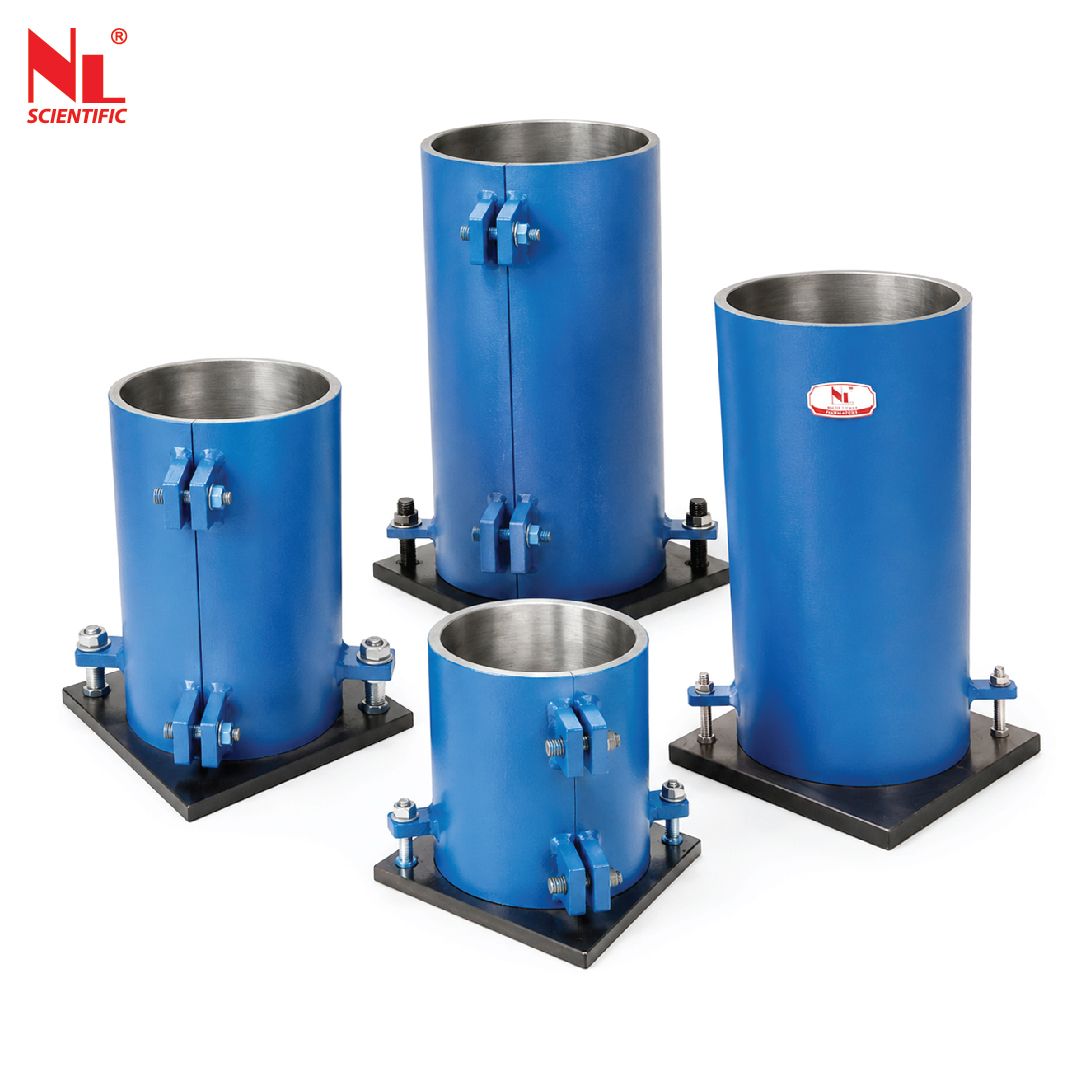

Mild Steel Cylinder Moulds
NL 4014 M /

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 12390-1, ASTM C39/C192, AASHTO T23/T126, BS 1881:108

Making Concrete Specimens

Technical Specifications :

Model Number	Items Description	Dimension (LxWxH) mm	Approx. Weight

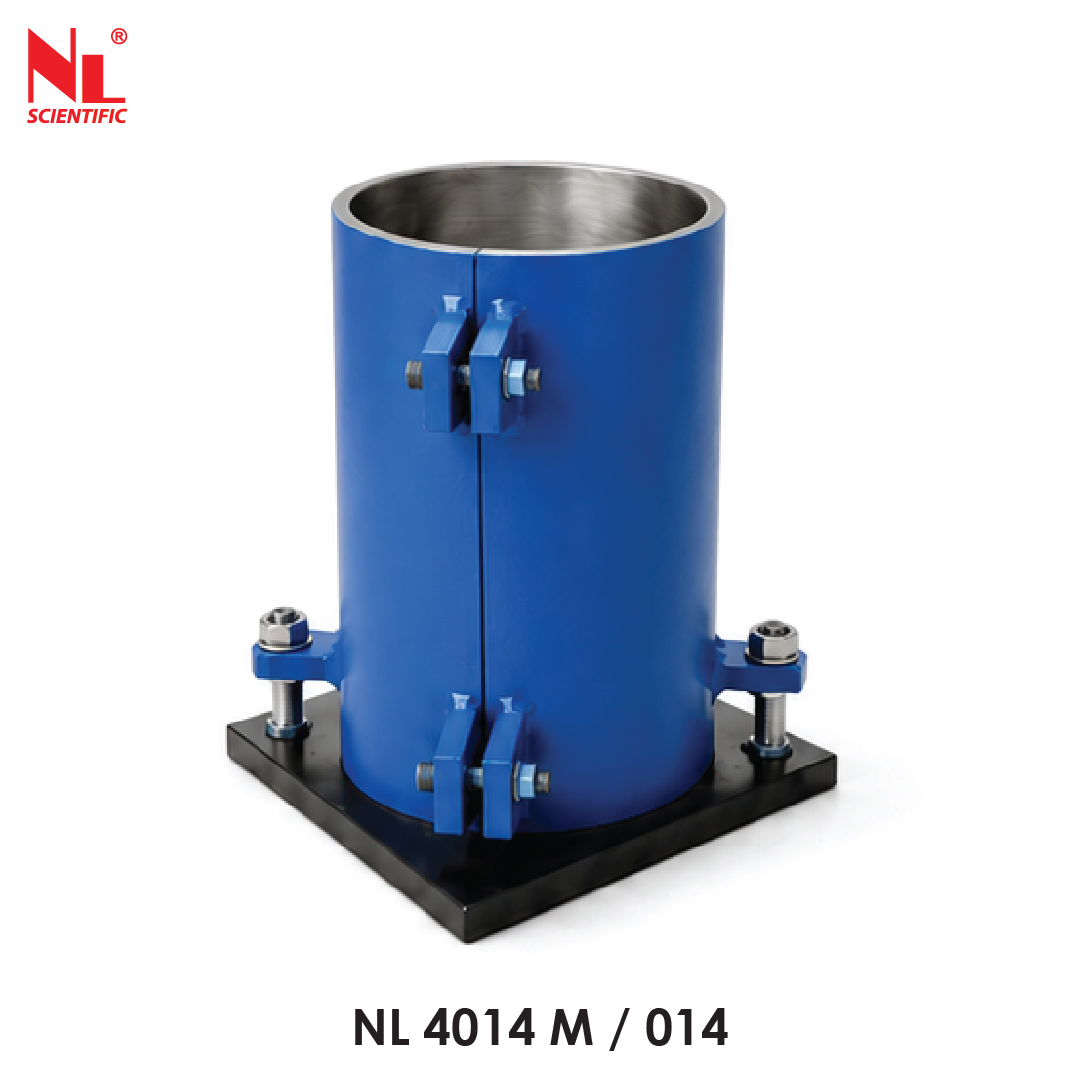

NL 4014 M / 014	Ø 100 x 200 mm Mild Steel Cylinder Mould	140 x 140 x 210	5.5 kg

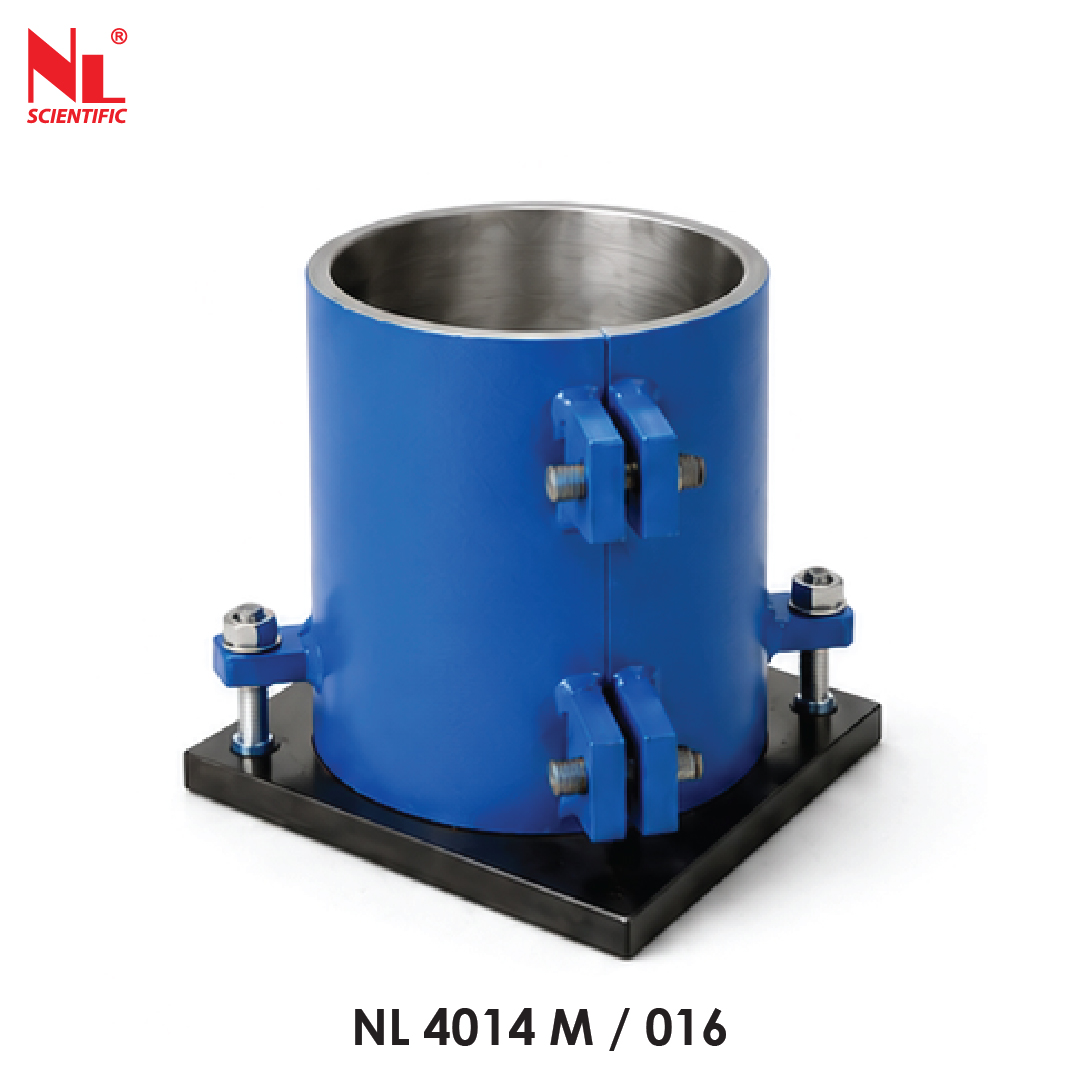

NL 4014 M / 016	Ø 150 x 150 mm Mild Steel Cylinder Mould	185 x 185 x 160	8.1 kg
NL 4014 M / 015	Ø 150 x 300 mm Mild Steel Cylinder Mould	185 x 185 x 310	13.2 kg

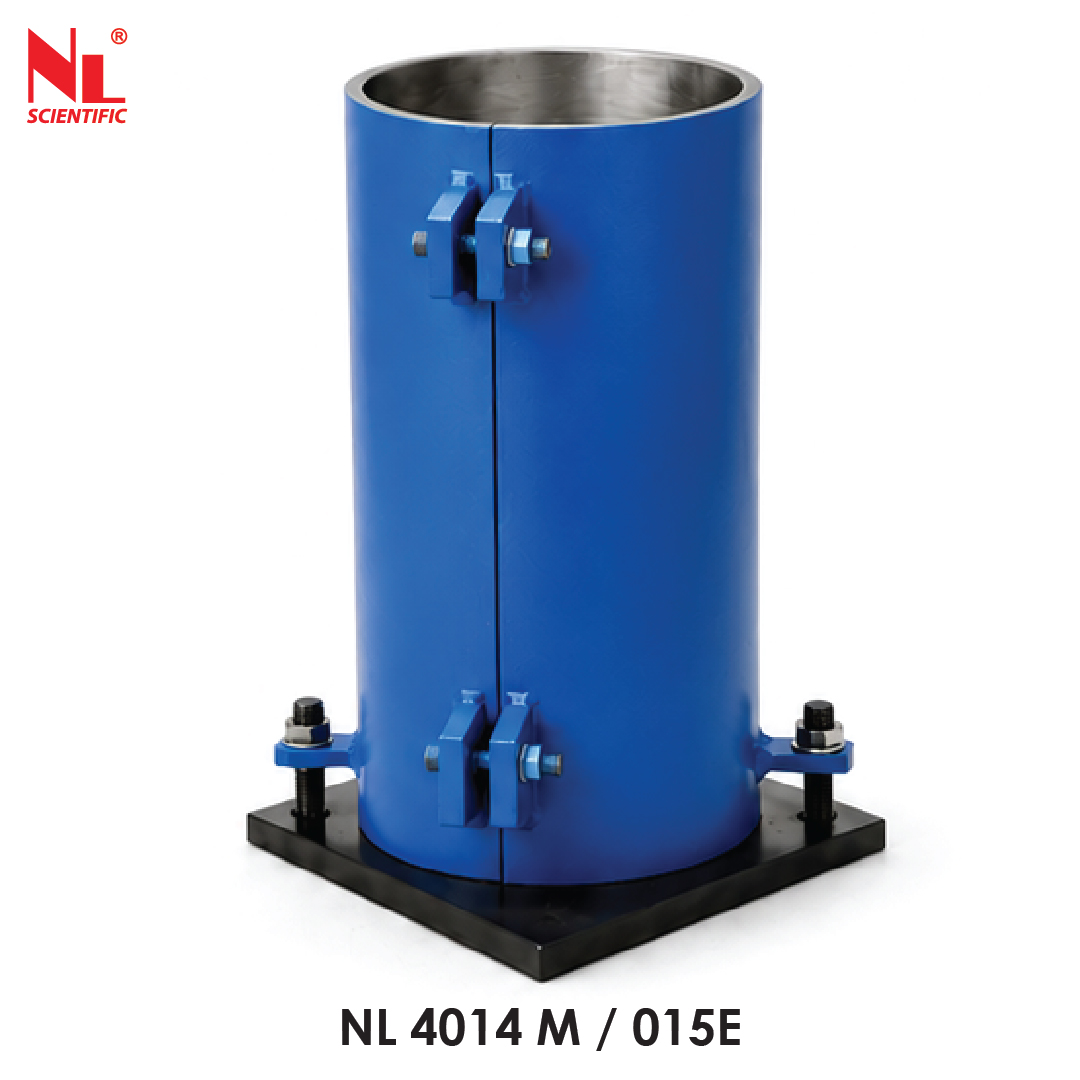

NL 4014 M / 015E	Ø 150 x 300 mm Mild Steel Cylinder Mould	185 x 185 x 310	9.0 kg
NL 4014 M / 017	Ø 152 x 305 mm Mild Steel Cylinder Mould	190 x 190 x 315	13.5 kg

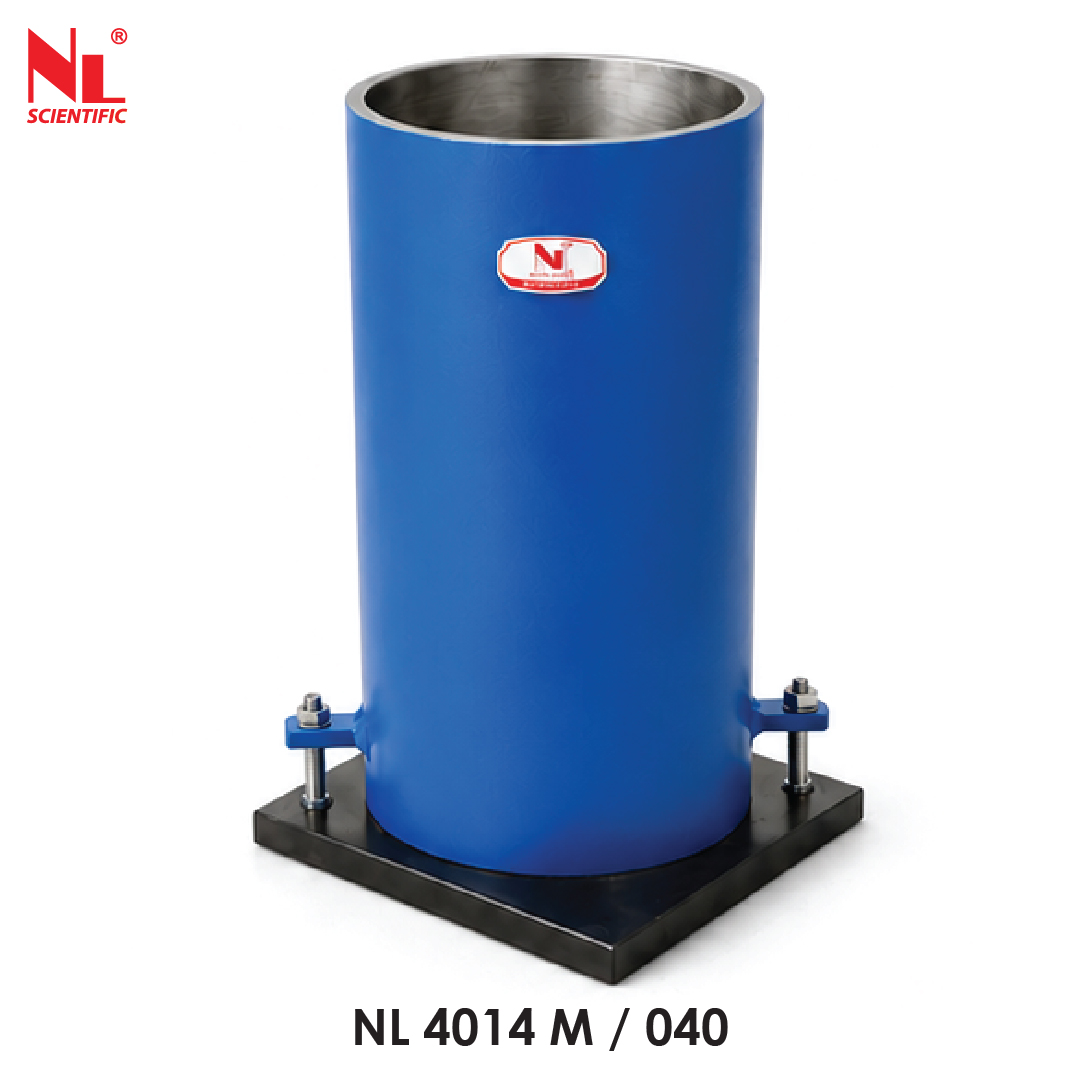

NL 4014 M / 040	Ø 250 x 500 mm Mild Steel Cylinder Mould	350 x 350 x 515	28 kg
NL 4014 M / 045	Ø 160 x 320 mm Height Mild Steel Cylinder Mould	190 x 190 x 310	14 kg
NL 4014 M / 046	Ø 75 x 150 mm Height Mild Steel Cylinder Mould	130 x 130 x 160	6.5 kg
