Standard: EN 196-1, EN ISO 679 Preparation of 40 x 40 x 160 mm cement mortar prisms Digimatic Jolting Apparatus is used to compact cement mortar prisms in three gang mould. Made with galvanized chrome steel with quick locking device for prism mould. Easily removable to check weight. Drop height 15 ...Read more

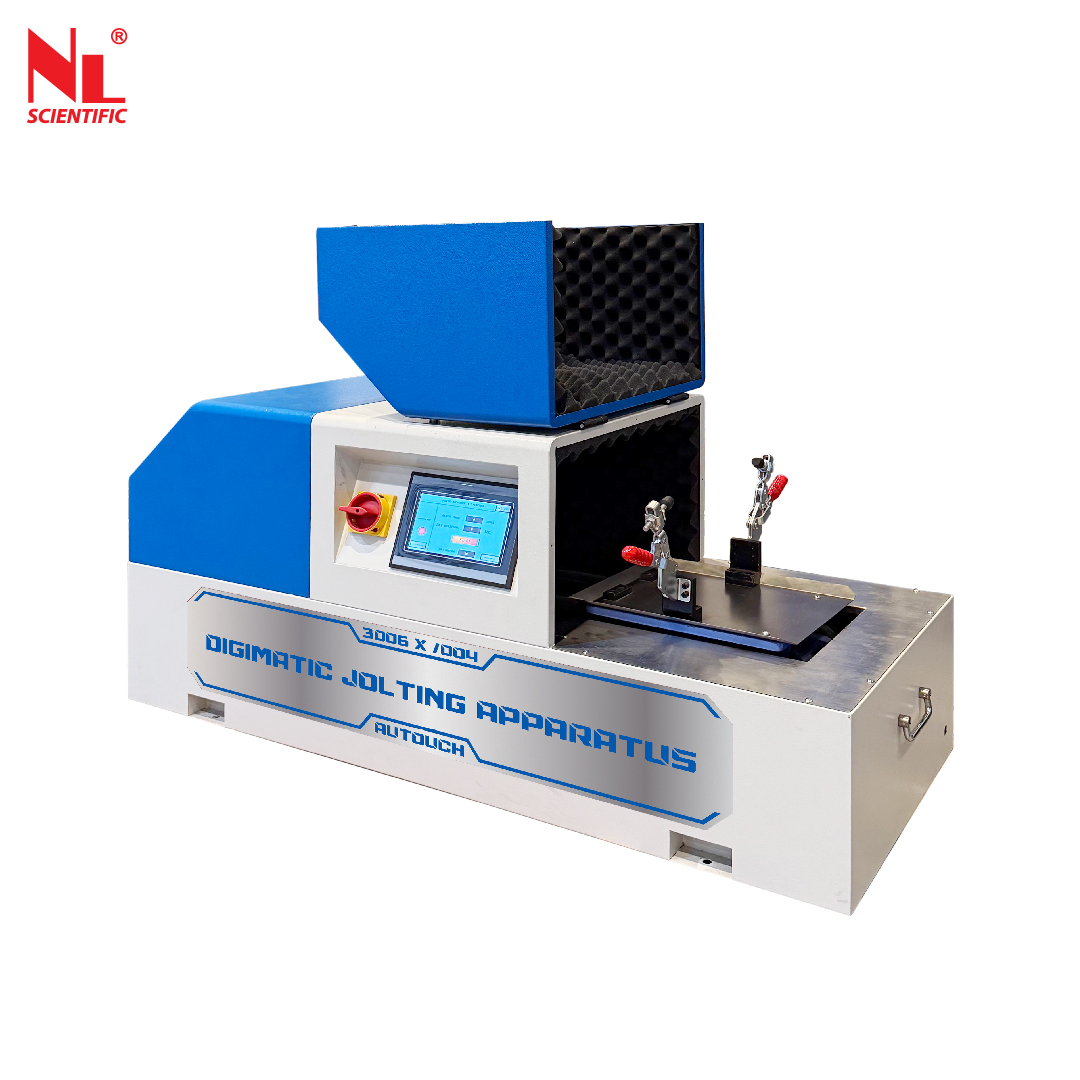

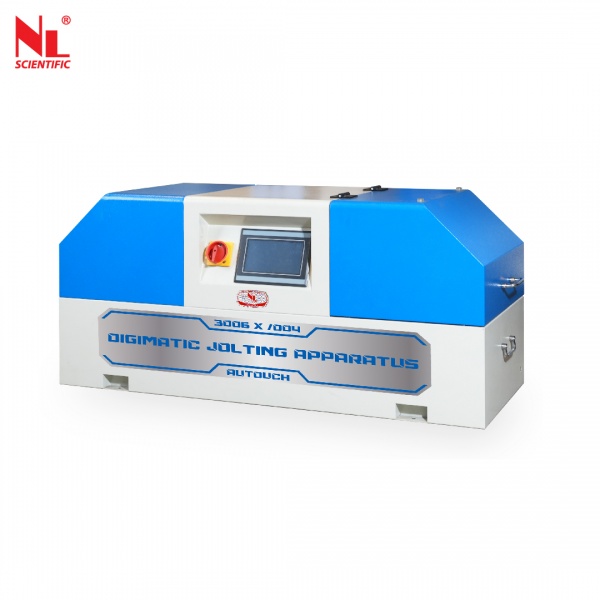

Digimatic Jolting Apparatus with Soundproof Enclosed (Autouch)
NL 3006 X / 004

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: EN 196-1, EN ISO 679

Preparation of 40 x 40 x 160 mm cement mortar prisms

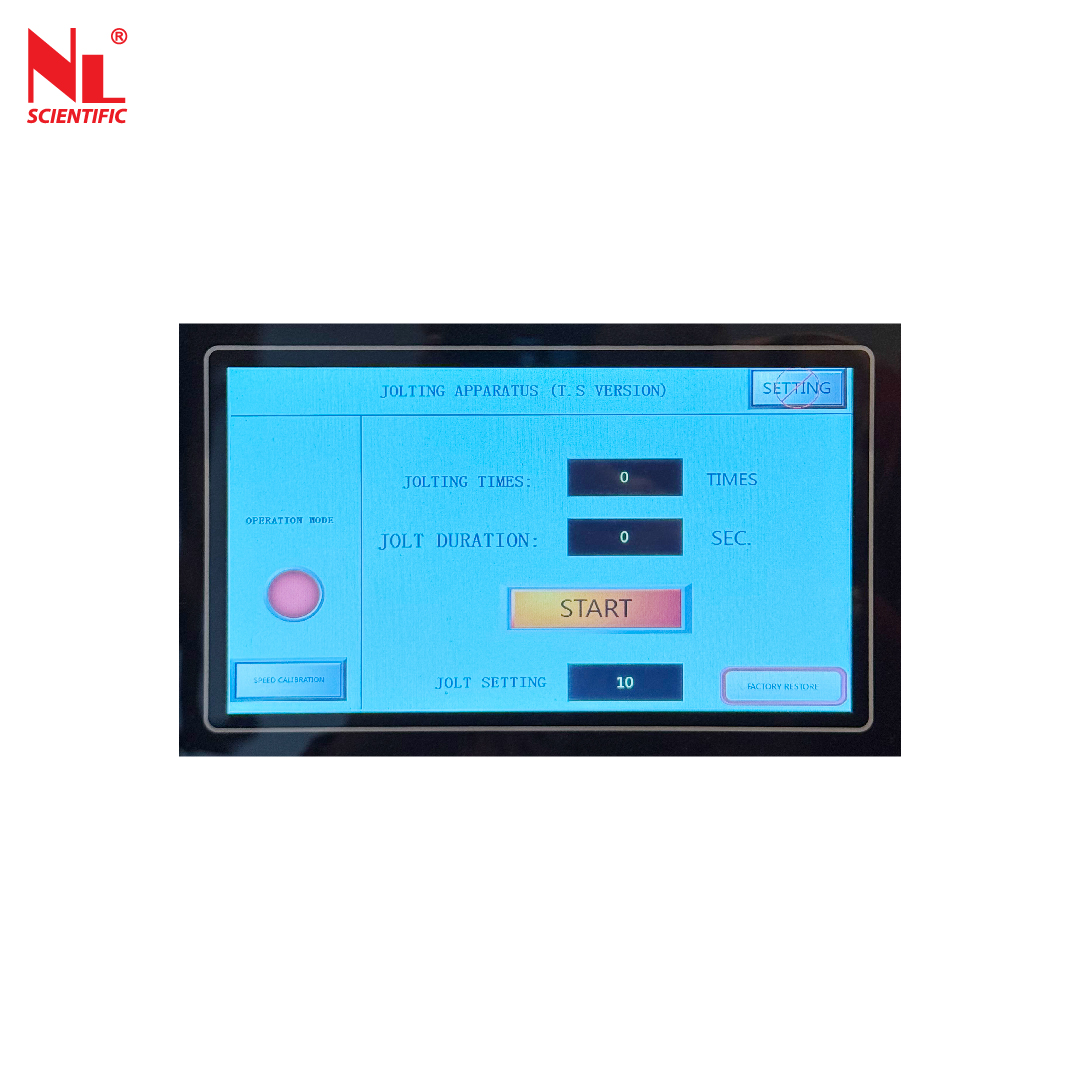

Digimatic Jolting Apparatus is used to compact cement mortar prisms in three gang mould. Made with galvanized chrome steel with quick locking device for prism mould. Easily removable to check weight. Drop height 15 mm with 60 drops per minute cycle. Touch screen control panel with main switch. Built in feed hopper and quick clamp.

Technical Specifications:

Model Number	NL 3006 X / 004
Dimension (mm)	1200 (L) x 490 (W) x 560 (H) mm
Approx. Weight	67 kg
Power	220~240 V, 1 Ph, 50 Hz, 0.4 A

Unit Consists Of:

Model Number	Parts Description	Qty

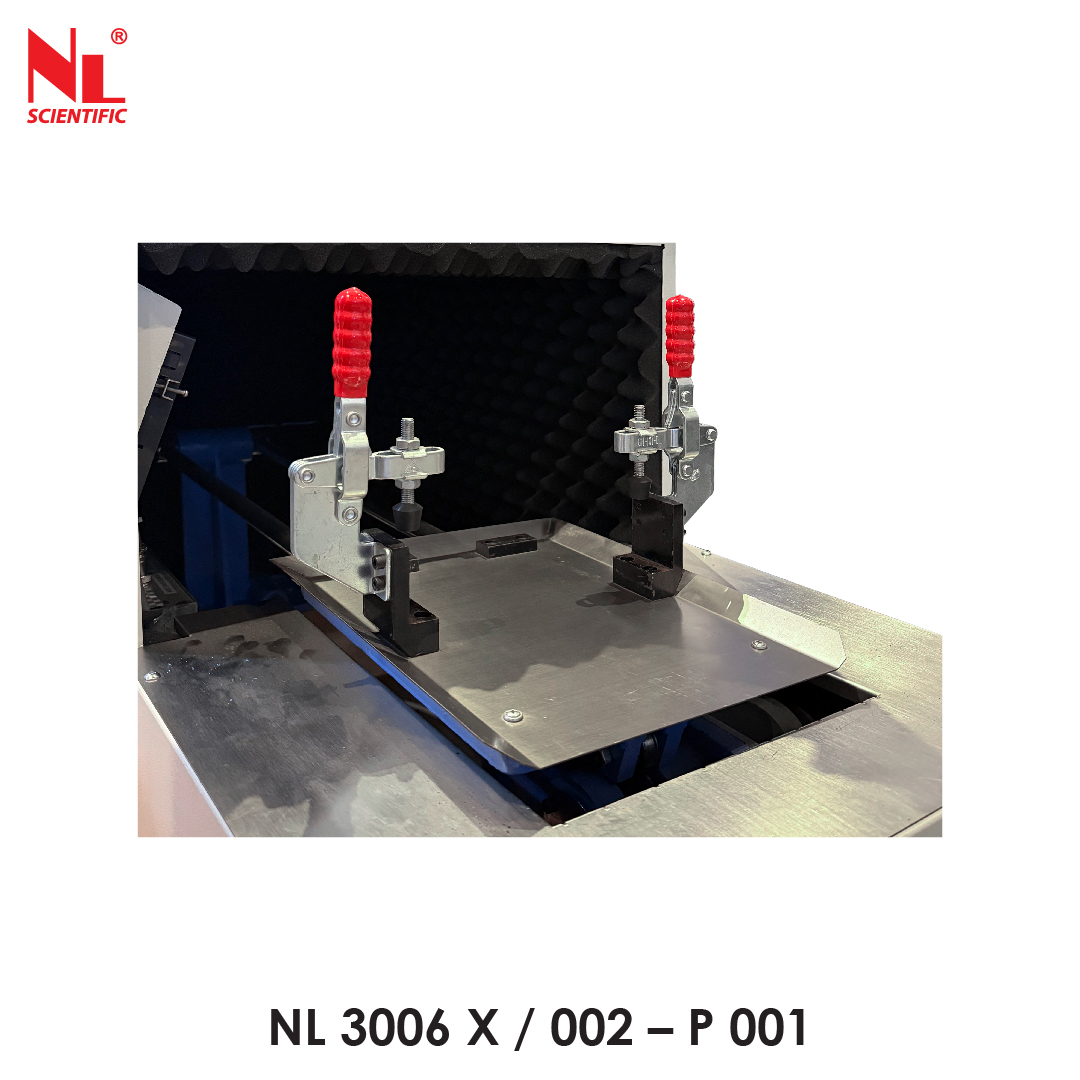

NL 3006 X / 004 – P 001	Mould Capping Clamp Set	1 Set
NL 3006 X / 001 – P 002	Scraper (set of 2)	1 Set

*1 Copy of Manual Instruction

Optional Accessories:

Model Number	Accessories Description

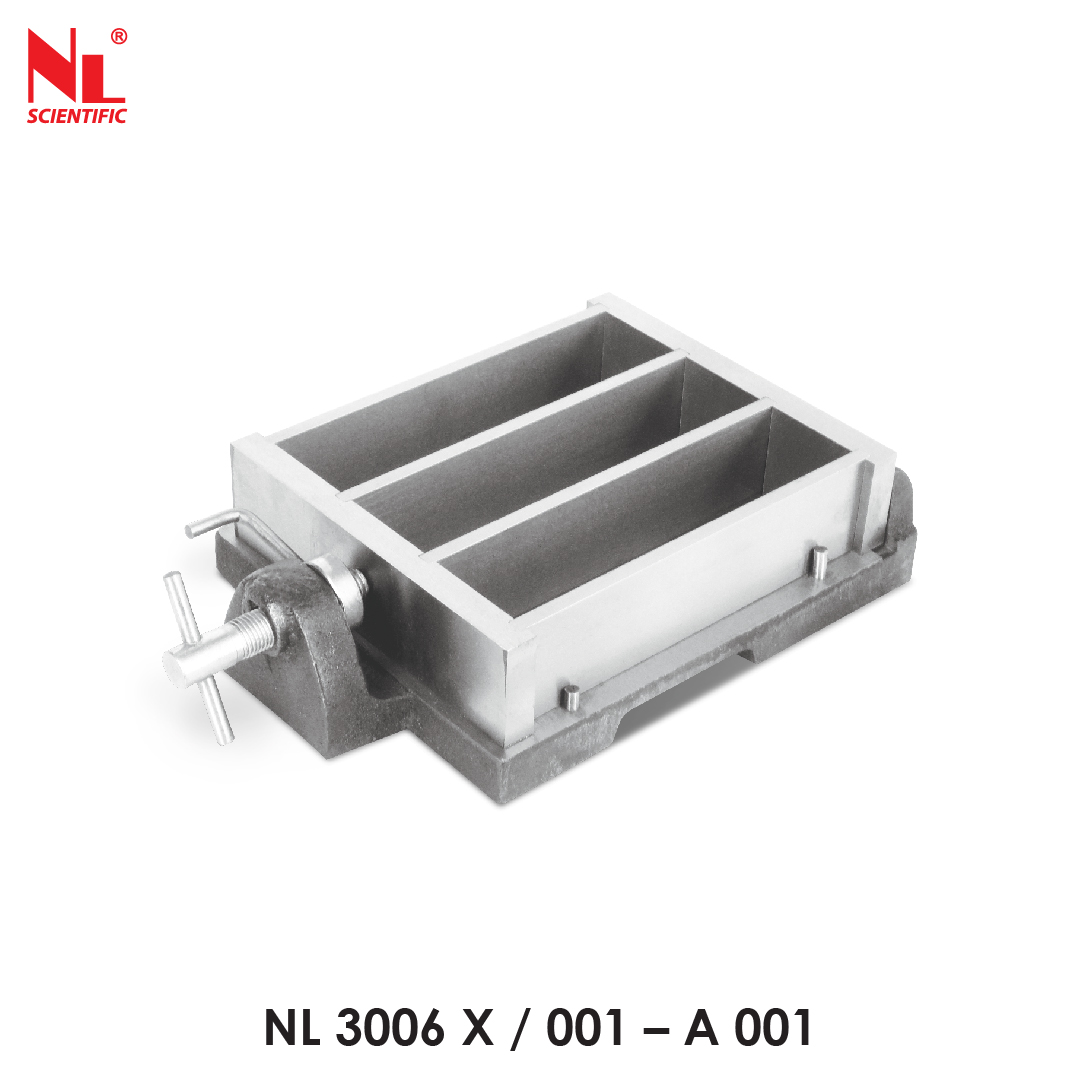

NL 3006 X / 001 – A 001	Three Gang Mould For Prisms 40 x 40 x 160 mm
NL 5001 X / 001 – A 023	Straightedge: 300 x 30 x 2 mm

HOW TO OPERATE VIDEO
