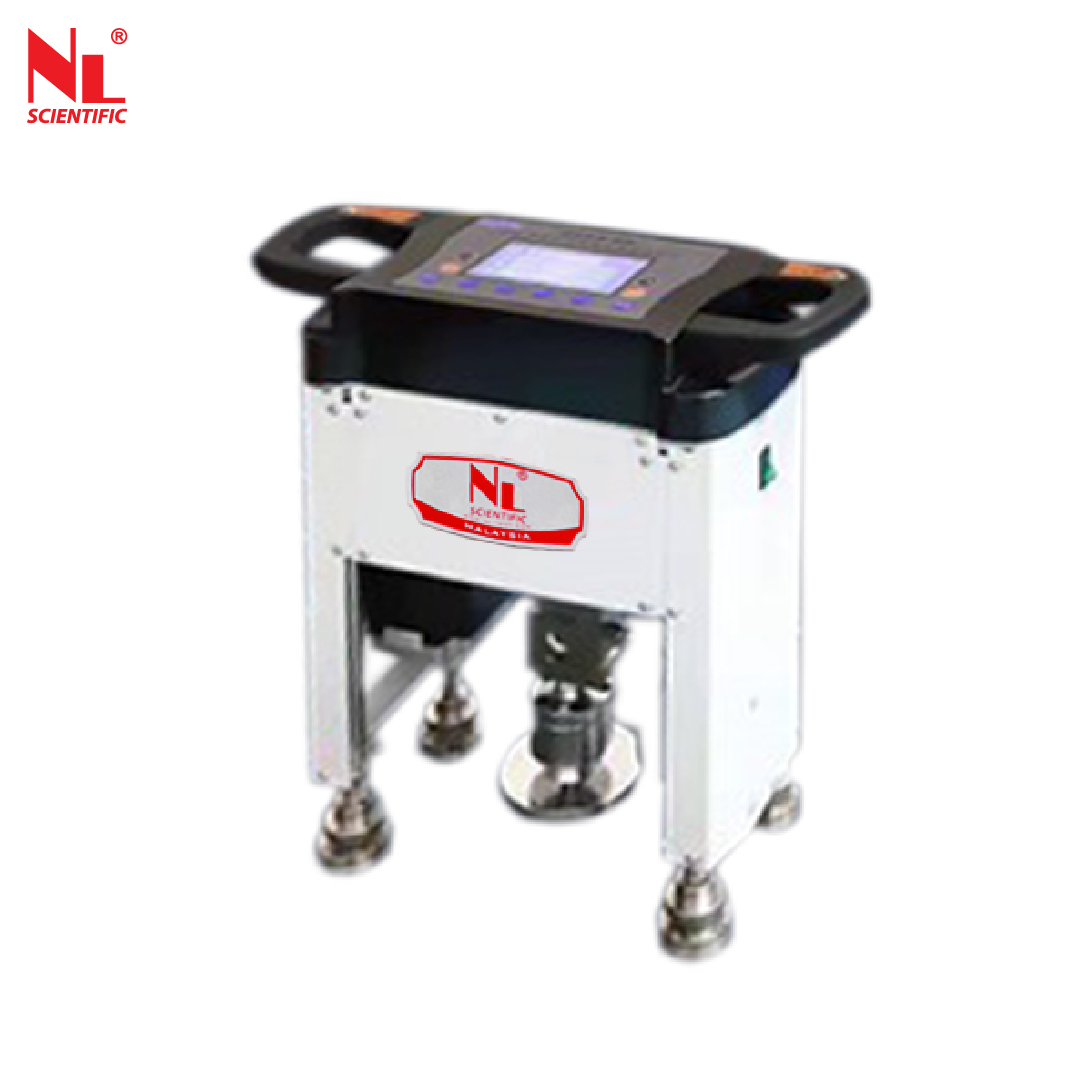

Automatic Digital Pull Off Tester 30kN (Portable Type, Bond Strength)
NL 3020 X / 004

Standard: EN 1542, EN 1348, EN 1015-12

Strength Evaluation

Features:-
- The equipment is equipped with leveling feet, which can adjust the level of the pulling head and the road surface during field testing.
- Stepper motor drive loading, with speed closed loop, stepless speed adjustment; high subdivision drive design, no vibration at low speed.
- It adopts a 5-inch color screen, has a friendly and beautiful interface, and has upper and lower limit protection and overload protection functions.
- With test result storage and viewing, it is convenient for users to view historical test data.
- Equipped with a power lithium battery pack (already installed), no generator or on-board battery is required for field testing.
- With USB data export function, test data can be directly exported to U disk in EXCEL format.
- The built-in large-capacity lithium battery can meet the full load test measurement for a day.
- The chassis with casters makes it easy to carry and move on site.

Technical Specifications:
