Standard: ASTM C230, ASTM C1437 Flow Table Apparatus (ASTM) The Flow Table Apparatus (ASTM) is used for determining the consistency, flow, workable life, and water vapor of freshly mixed concrete, mortar, or similar materials, alongside evaluating their permeability. Its pu ...Read more

Flow Table Apparatus (ASTM)
NL 3016 X / 001 & 002

  • Description

Standard: ASTM C230, ASTM C1437

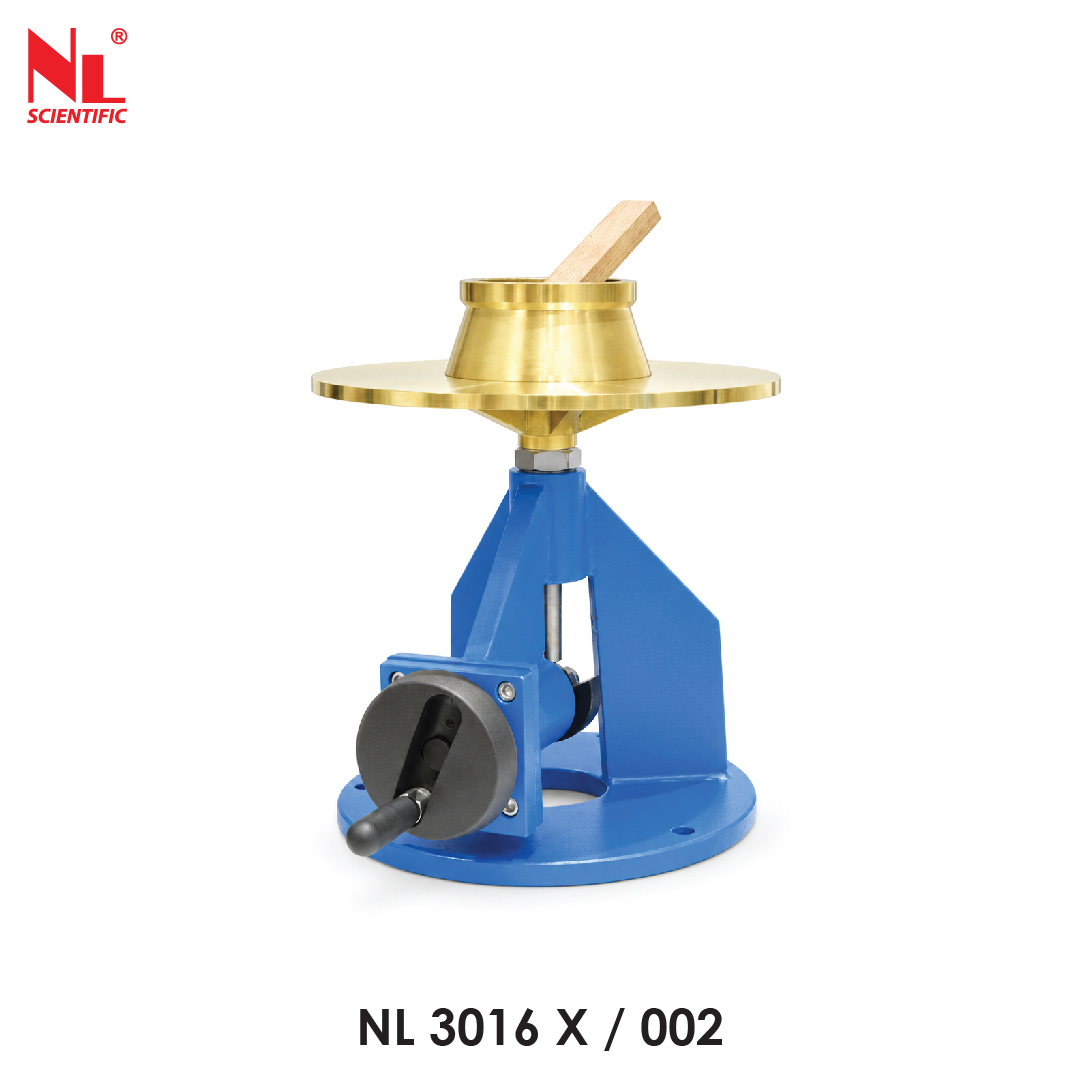

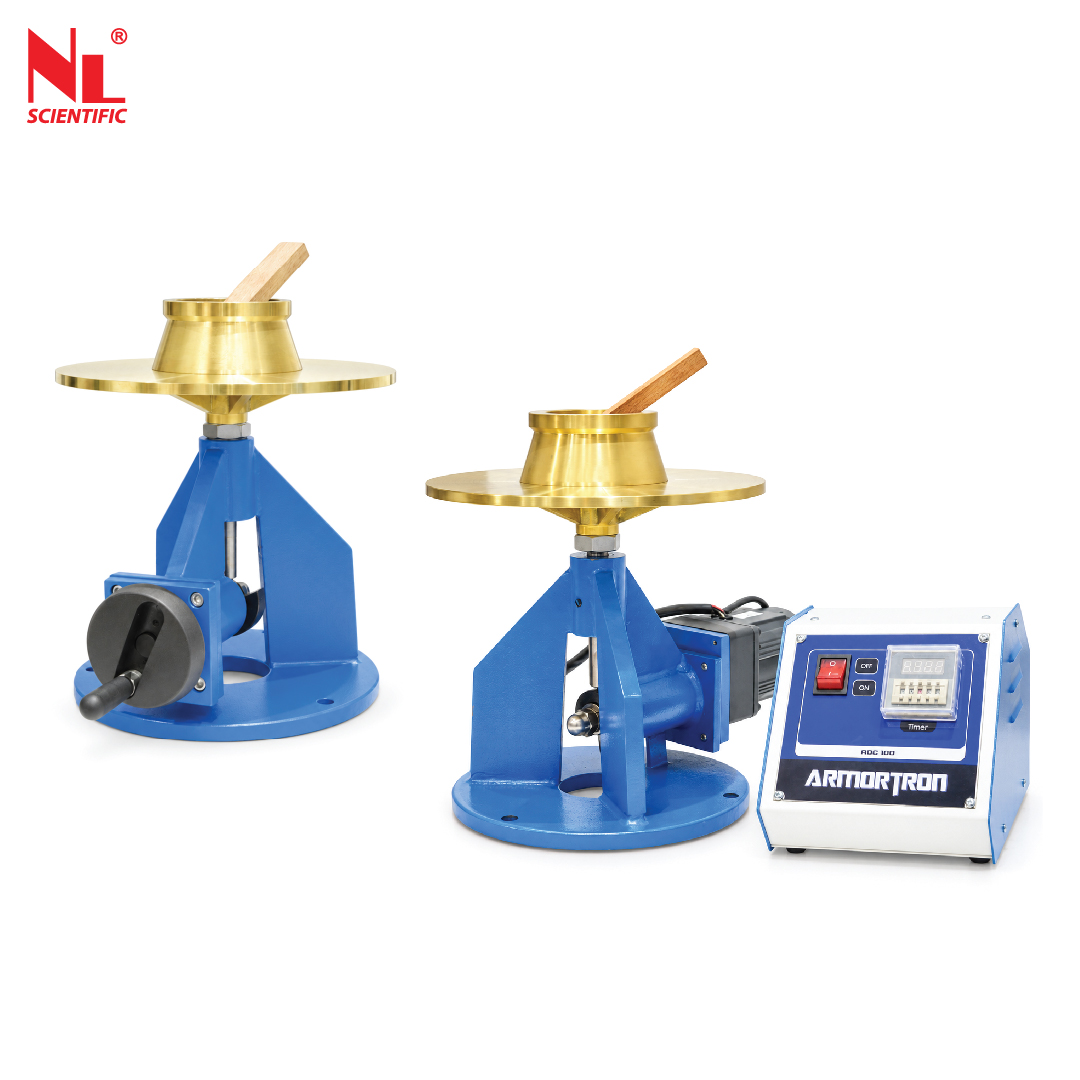

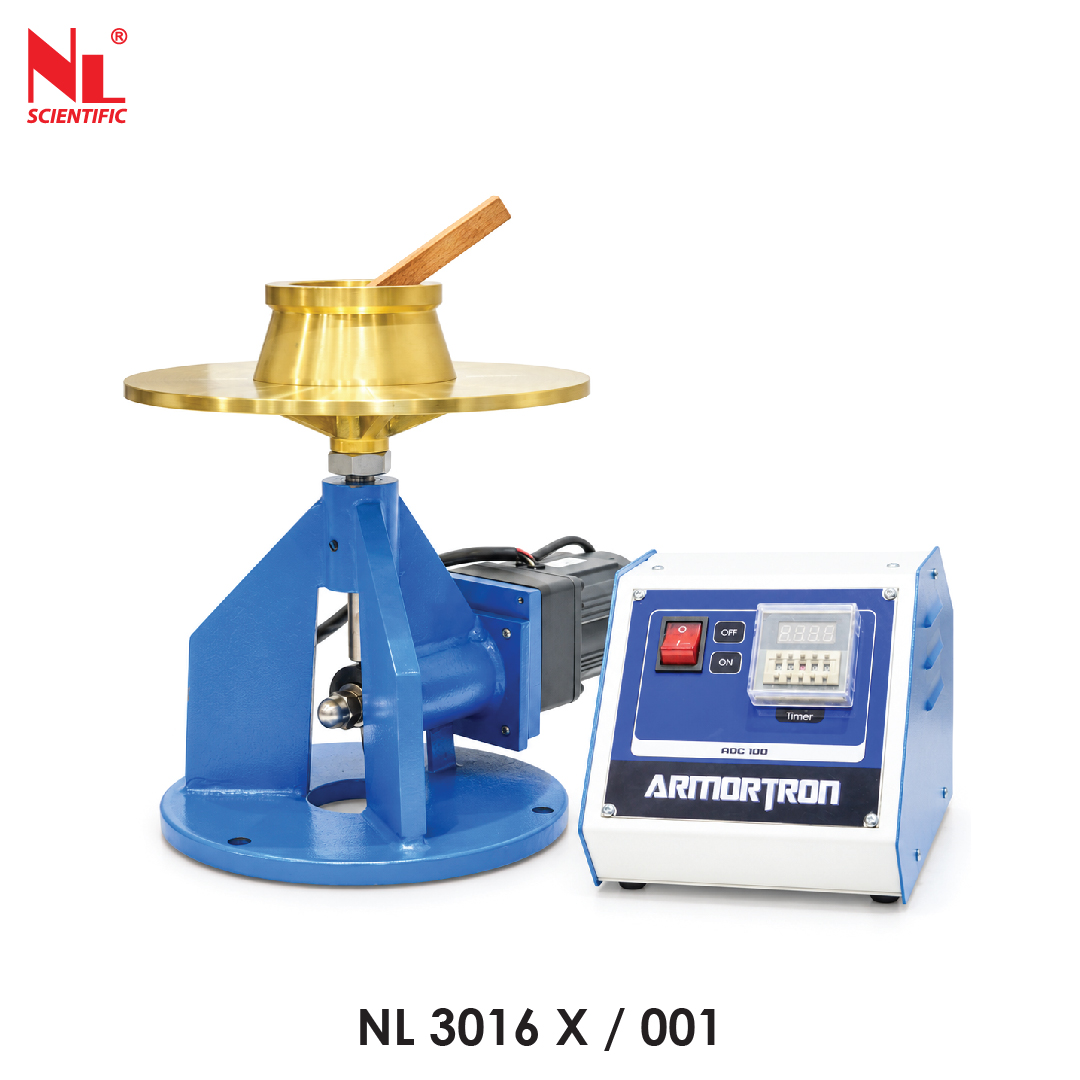

Flow Table Apparatus (ASTM)

The Flow Table Apparatus (ASTM) is used for determining the consistency, flow, workable life, and water vapor of freshly mixed concrete, mortar, or similar materials, alongside evaluating their permeability. Its purpose lies in measuring the flow or spread of such mixtures under standardized jolting or dropping actions, revealing essential characteristics like workability, cohesion, and consistency crucial for construction applications. This apparatus is compliant with ASTM specifications, available in manual or motorized variants, boasting a top plate made of high-quality brass with a smooth plane surface finish, and it includes a mold and tamper for comprehensive testing.

Features of Flow Table Apparatus

  • Versatile Functionality: Capable of determining the consistency, flow, workable life, and water vapor of freshly mixed concrete, mortar, or similar materials.
  • Permeability Assessment: Allows for the evaluation of the permeability of the materials being tested.
  • Standardized Testing Procedure: Conducts flow or spread measurements under standardized jolting or dropping actions, providing consistent and reliable results.
  • Reveals Essential Characteristics: Provides insights into crucial characteristics such as workability, cohesion, and consistency, essential for construction applications.
  • Compliance with ASTM Specifications: Adheres to ASTM specifications, ensuring accuracy and reliability in testing procedures.
  • Manual or Motorized Options: Available in both manual and motorized variants, offering flexibility in operation according to user preference and requirements.
  • Durable Construction: Boasts a top plate crafted from high-quality brass with a smooth plane surface finish, ensuring durability and precision in testing.
  • Comprehensive Testing Accessories: Includes a mold and tamper, facilitating comprehensive testing procedures.

Technical Specifications

 Model Number    NL 3016 X / 001     NL 3016 X / 002
 Type Motorized Operated Hand Operated
 Product Dimension   310 (L) x 255 (W) x 245 (H) mm
 Diameter of Table Ø 10” / Ø 254 mm (Brass)
 Height of Drop 12.7 mm
 Table Top Weight 9 lb / 4.08 kg
 Speed - 100 rpm
 Approx. Weight 14.5 kg  15.5 kg
 Power 220~240 V, 25 W, 1 Ph,
50/60 Hz, 0.3 A, 0.034 Hp		 -

Unit Consist Of

 Model Number    NL 3016 X / 001     NL 3016 X / 002
 NL ADC 100 -  Armortron Controller
 NL 3016 X / 001 – P 001

Flow Mold : (Made of Brass)
Top ID - 70 mm
Bottom ID - 100 mm
Internal Depth - 50.8 mm
 NL 3016 X / 001 – P 004  Hardwood Tamper (13 x 25 x 150 mm)

Optional Accessories

 Model Number   Accessories Description

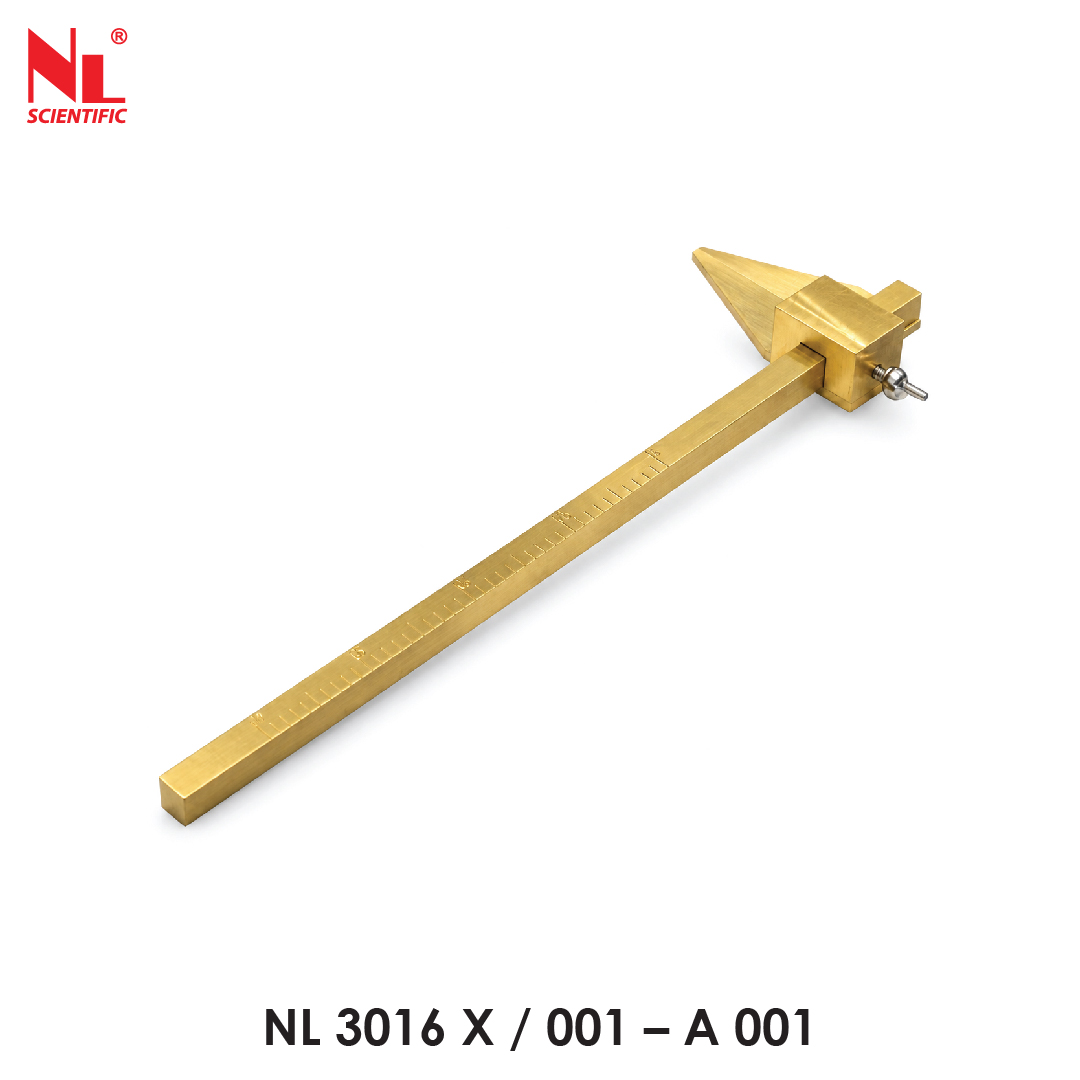

 NL 3016 X / 001 – A 001  Brass Flow Caliper (ASTM)

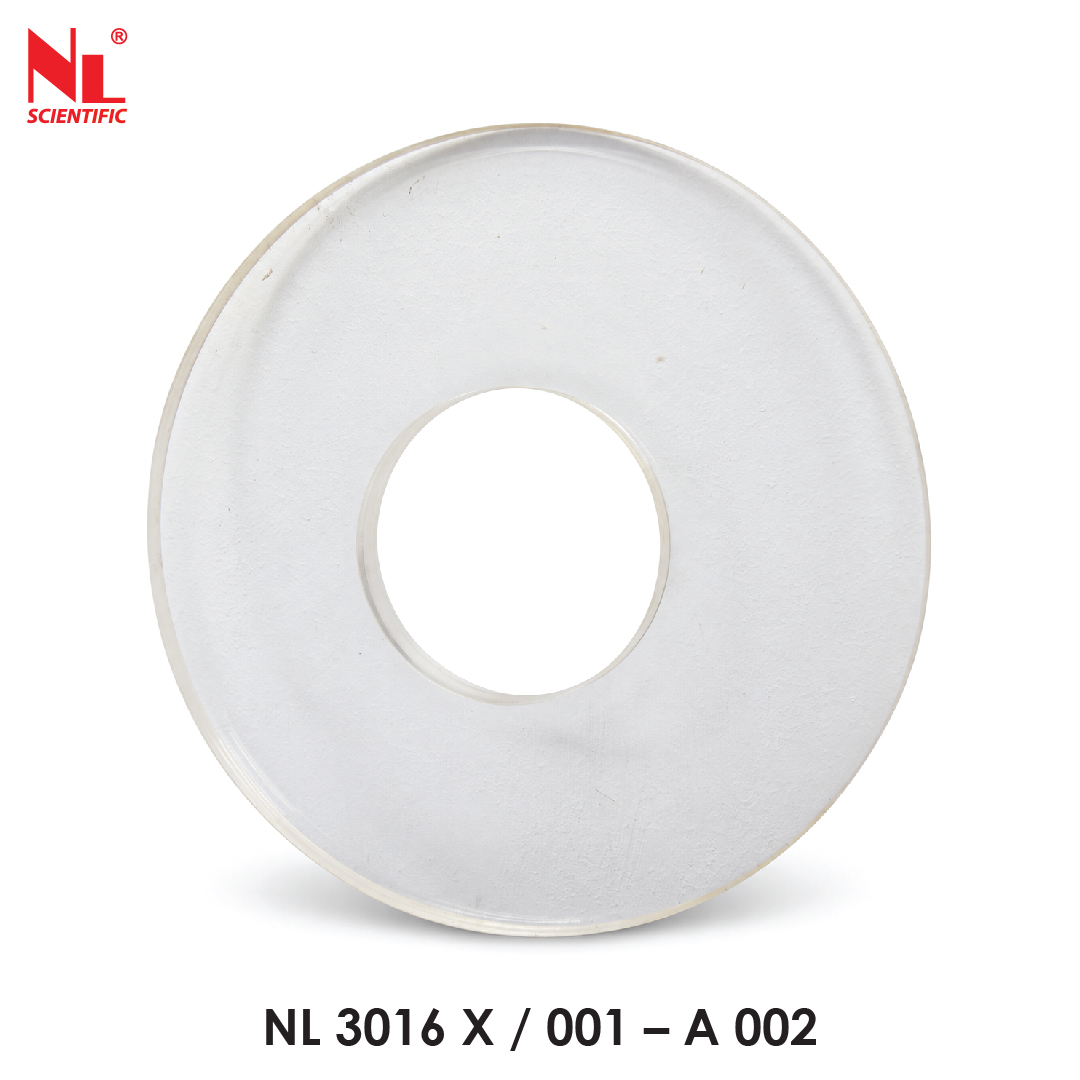

 NL 3016 X / 001 – A 002  Acrylic Retainer Disc

Standard

ASTM C230 defines the flow table test method for determining the consistency and workability of concrete and mortar mixes. This standard outlines the procedure for measuring the flow or spread of a mixture when subjected to standardized jolting or dropping actions. Essentially, it helps assess how easily the mixture can be placed and consolidated within a form or mold during construction.

Test Procedure of Flow Table Test

  1. Preparation of Sample: Prepare the concrete or mortar sample according to the specified mix design and ensure it is properly mixed and free of any lumps or air voids.

  2. Setup: Place the flow table apparatus on a stable and level surface. Ensure that the top plate is clean and free from any debris.

  3. Mold Preparation: Place the mold on the center of the flow table and secure it firmly in place.

  4. Filling the Mold: Fill the mold with the prepared concrete or mortar sample, ensuring it is evenly distributed and compacted within the mold.

  5. Initial Measurement: Measure the height of the sample in the mold from the base of the mold to the highest point of the sample surface.

  6. Release: Remove any excess material from the top of the mold and gently release the mold from the sample without disturbing its shape.

  7. Jolting or Dropping Action: Lift the flow table apparatus and allow it to drop onto the surface of the sample from a specified height or subject it to a standardized jolting action.

  8. Measurement After Action: After the jolting or dropping action, measure the height of the sample again using the same reference points as before.

  9. Calculations: Calculate the flow or spread of the sample by subtracting the final height measurement from the initial height measurement. This difference represents the flow of the material under the applied action.
